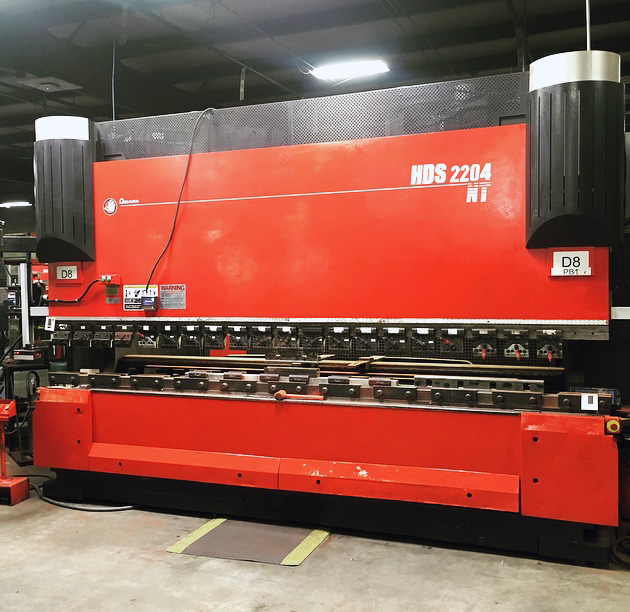

sold-242 Ton X 168″ AMADA HDS-2204NT Hydraulic Press Brake
NT 8-Axis CNC Control and 5-Axis Backgauge
Manufactured February of 2010
https://www.youtube.com/watch?v=xGNqRbhZMqQ&feature=emb_title
Ultra High Precision Positioning and Bending Machine
The Amada HDS NT series are Servo Hydraulic Hybrid press brakes for ultra high precision positioning and bending. This system uses independent AC-servo motors to drive high efficiency, bi-directional hydraulic pumps. The Amada HDS press brakes feature high approach, bending and return speeds; unequalled ram positioning and repeatability of +/- 0.00004″. All HDS series press brakes feature auto-crowning, five-axis CNC backgauges and eight-axis Amada AMNC Networking controls . This machine is a 242 ton x 4 meter HDS 2204 NT press brake. The 2204 is highest capacity version of the HDS series press brake.
Request QuoteSystem Specifications:
Model: HDS-2204NT
Capacity: 220 lbs.
Table length: 168.5″
Maximum bending length: 168.5″
Distance between uprights: 148.0″
Throat depth: 17.7″
Length of stroke: 9.8″
Open height: 20.5″
Main motor: 200 Volt
Power required: 26 kVA
Hydraulic oil reservoir: 27.2 gallons
Overall length: 224.8″
Overall width: 97.0″
Overall height: 126.5″
Ground height: 126.6″
Net weight: 50,706 lbs.
Environmental temperature: 32~104 degrees F
Date manufactured: February 2010
Request Quote
Regardless of your bending and forming needs, Elite Machinery Inc. can help. We have owned and sold the popular makes and models of precision CNC press brakes, folding machines, panel formers and robotic bending systems. We will advise you on the right solution for your unique applications. Contact us.
