sold-Amada HDS-5020NT Hybrid Servo-Hydraulic Press Brake
New in 2011
Request Quote

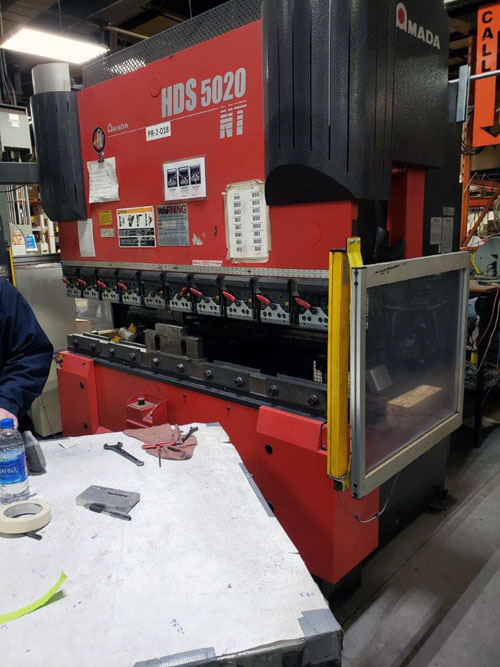

Amada HDS Series Press Brake
The Amada HDS-5020 NT is a 55 ton x 6′ servo-hydraulic press brake. All HDS series are Servo Hydraulic Hybrid press brakes for ultra high precision positioning and bending. This system uses independent AC-servo motors to drive high efficiency, bi-directional hydraulic pumps. Resulting in the Amada HDS press brake’s high approach, bending and return speeds; unequalled ram positioning and repeatability of +/- 0.00004″. In addition to the robust design all of the HDS series press brakes feature auto-crowning, 5 axis CNC backgauges and Amada AMNC Networking controls.
System Specifications
Press Brake
Capacity: 50 Tons
Table length: 81.5”
Maximum Bending length: 80.3”
Distance between uprights: 66.9”
Throat depth: 16.3”
Length of stroke: 7.9”
Open height: 19.7”
Main motor: 200 volt
Power required: 9 kVA
Hydraulic oil reservoir: 9.9 Gal.
Overall length: 133.1”
Overall width: 89.6”
Overall height: 103.1”
Ground height: 103.1”
Net weight: 11, 684 lbs.
Environmental temperature: 32 degrees ~ 104 degrees F
Backgauge
Repeatability: L Axis 0.0008 inches
Movement Range:
L Axis 27.55 inches
Y Axis 86.6 inches
Z Axis 9.8 inches
Feed Speed:
L Axis 1,180 inches per minute
Y Axis 2,362 inches per minute
X Axis 393 inches per minute
Minimum Command Unit
Ram 0.0001 inch
Backgauge 0.001 inch
CNC Controller
Model: Amada AMNC-PC
Axes of Control: Eight
D1 & D2 – Ram depth : ( 0.098″ ram tilt)
L1 & L2 – Backgauge: (14 Backgauge Taper)
Z Vertical finger position: Y1 & Y2
– Horiz. finger movement, side to side CC – Ram crowning
Input Method: Touch Screen
Display
15″ Color Liquid Crystal Touch Screen
Program Storage
Limited only by network storage capacity
Bends per Program: 99
Die Library: 300
Punch Library: 300
