sold-110 Ton x 10′ Amada RG-100 “up-acting” Press Brake
Manufactured in 1992

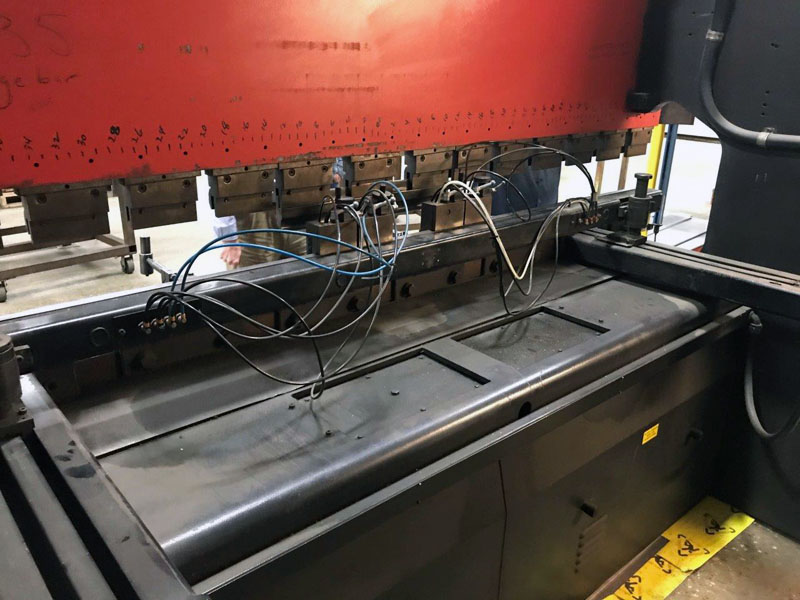

Equipped with NC9EXII Control and Backgauge
Request Quote
RG Series Bending Press Brake
The Amada RG series press brakes are bending mechanisms built into a simple system. The primary concern of this original system is precision and operability. The Amada RG press brake series provides excellent performance in general sheet metal processing bending small and large parts. The numbers of Amada press brakes units installed worldwide proves its high reliability. The RG-100 is a 10′ x 110 ton bending capacity “up-acting” press brake. This machine is equipped with the popular and user friendly NC9EXII control and backgauge, which is capable of both “angle mode” and “depth mode” programming for fast set ups and versatility.
System Specifications:
Model: RG-100
Capacity: 100 tons
Table length: 118.2”
Maximum bending length: 122.1”
Distance between the uprights: 100.5”
Throat depth: 15.76”
Length of stroke: 3.94”
Open height: 14.58”
Power required: 8 kVA
Hydraulic oil reservoir: 17.16 gal.
Overall length: 120.4”
Overall width: 61.5”
Overall height: 90.6”
Ground height: 90.6”
Net weight: 13,600 lbs.
Approximate shipping dimensions L x W x H: 122” x 61.22” x 90.55”
Ram Speeds
Approach: 2.04 inches per second
Bending: 0.39 inches per second
Return: 2.32 inches per second
Hydraulic tank: 17.1 gal
NC9EXII Specifications
Number of drive axes: 3
Input method: Tenkey numeric pad
Data display: LED
Memory capacity: 99 steps
Request Quote
