4000-Watt Trumpf TruLaser 3030 Laser Cutting System

Manufactured in 2014

Machine Number 1321

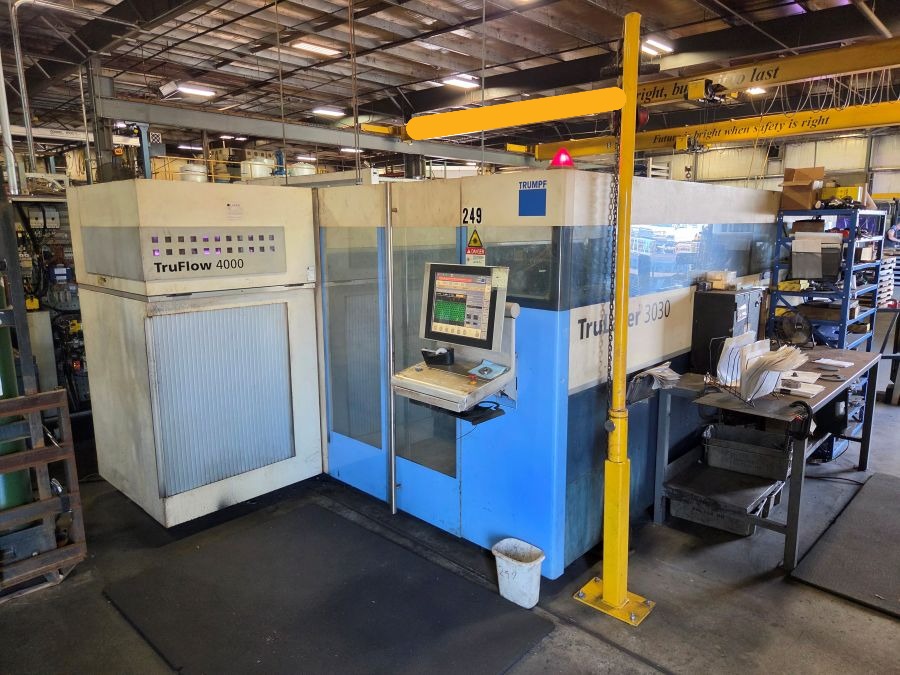

1_1321-Trumpf-TruLaser-3030-4kW-Op-end-and-resonator

Image 1 of 5

Trumpf TruLaser 3030 CO2 laser

The Trumpf TruLaser 3030 is the updated version of the popular TCL-3030 laser, the “workhorse” of the Trumpf laser lineup. The TruLaser is a versatile and reliable 5’ x 10’ laser cutting system equipped with a high precision torque drive in combination with direct linear drives for high speed, high precision, material processing. This machine features Trumpf’s TruFlow 4000 watt resonator.

Specifications

Working Area:
     X-axis: 120″
     Y-axis: 60″
     Z-axis: 5″
Maximum Work-Piece Weight: 1562 lbs.
Maximum Speed 140 m/min
Accuracy, smallest programmable increment: 0.0004″

Resonator

Model: TruFlow 4000
Maximum Power: 4000 watts
Maximum sheet thickness in mild steel: 20 mm
Maximum sheet thickness in stainless steel: 15 mm
Maximum sheet thickness in aluminum: 10 mm
Electromagnetic bearings

Equipped with

Siemens control
Chiller
Dust Collector
