4000-Watt Trumpf TruLaser 3030 Laser Cutting System
Manufactured in 2014
Machine Number 1321
Request Quote

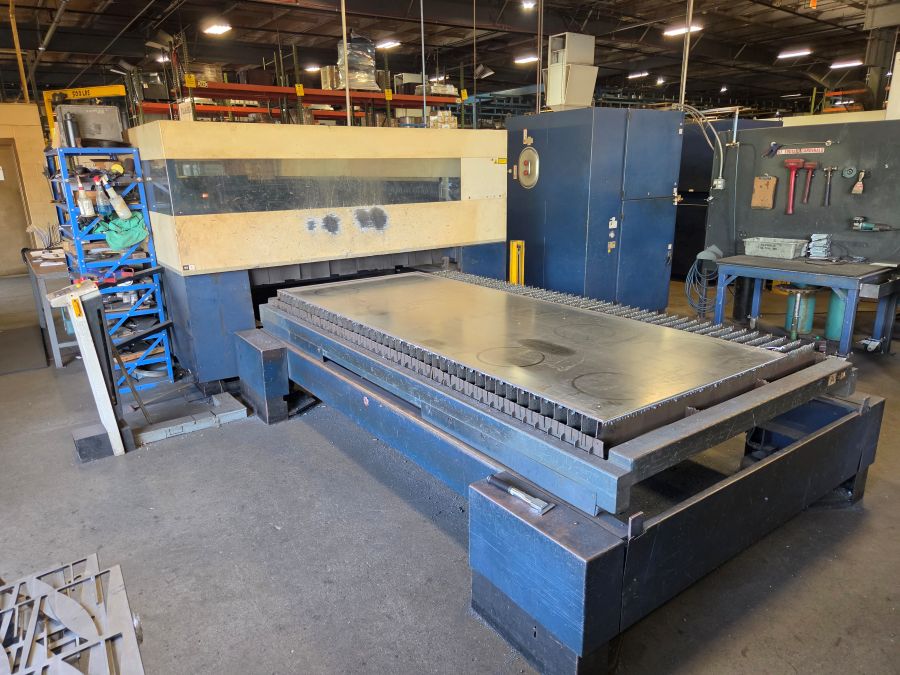

Trumpf TruLaser 3030 CO2 laser
The Trumpf TruLaser 3030 is the updated version of the popular TCL-3030 laser, the “workhorse” of the Trumpf laser lineup. The TruLaser is a versatile and reliable 5’ x 10’ laser cutting system equipped with a high precision torque drive in combination with direct linear drives for high speed, high precision, material processing. This machine features Trumpf’s TruFlow 4000 watt resonator.
Specifications
Working Area:
X-axis: 120″
Y-axis: 60″
Z-axis: 5″
Maximum Work-Piece Weight: 1562 lbs.
Maximum Speed 140 m/min
Accuracy, smallest programmable increment: 0.0004″
Resonator
Model: TruFlow 4000
Maximum Power: 4000 watts
Maximum sheet thickness in mild steel: 20 mm
Maximum sheet thickness in stainless steel: 15 mm
Maximum sheet thickness in aluminum: 10 mm
Electromagnetic bearings
Equipped with
Siemens control
Chiller
Dust Collector
