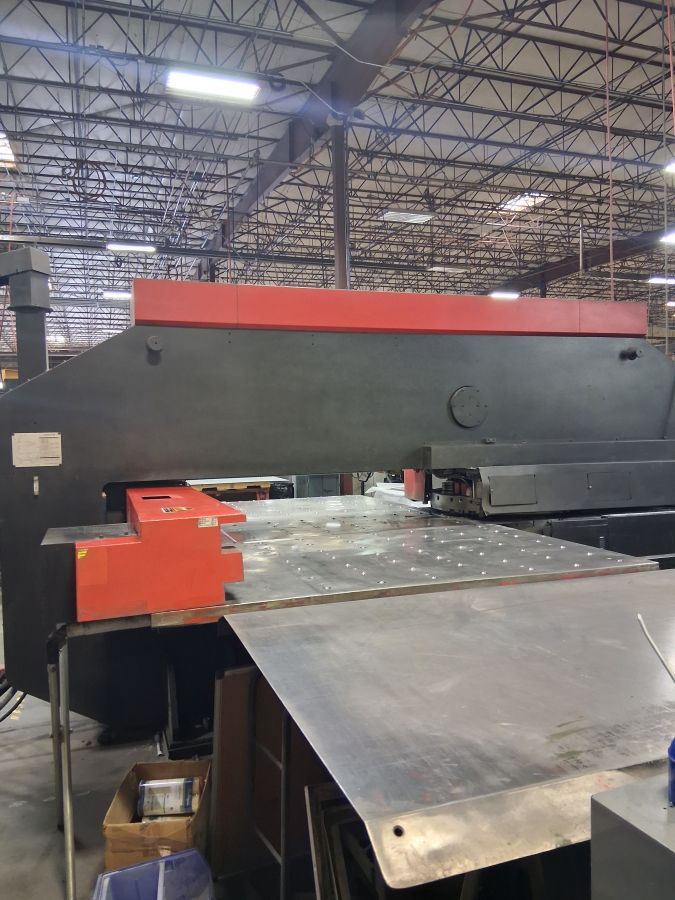

33 Ton Amada Vipros 367 Turret Punch Press
with 58 Station 2 Auto-Index Turret and Fanuc 04PC control
Manufactured in 1995
Machine Number 1309
Request Quote
Amada Vipros 367
The Amada Vipros 367 is a CNC hydraulic turret punch press with 33-tons of punching capacity and the capability to process 5′ x 10′ sheets. This machine is equipped with a 58 station turret with two (2) auto-index stations.
Machine Specifications
Capacity: 33 Ton
Sheet Size: 60″ x 72″ (Longer Using Auto Repo)
Maximum Thickest Material: 1/4″
Max. Hole Diameter: 4 1/2″
Number of Stations: 58 – 2 Auto Index Stations
Max Ram Stroke: 1.575″
Hit Rate (.078″ Pitch): 315 HPM
Hit Rate (.314″ Pitch): 245 HPM
Hit Rate – 1″ Centers: 200 HPM
Linear Positioning Speed: 2,000 IPM
Max. Forming: 1/2″ Flange
Electrics: 220 Volts/3/60
Machine Weight: 30,800 lbs
Fanuc O4PC Controller Specifications
Model: Fanuc O4PC CNC Control
Control Function: X, Y, T & C
Input Method: MDI, Paper Tape, DNC
Minimum Command Unit 0.001″ (X, Y) .010 (C)
Minimum Travel Unit 0.001″ (X, Y) .010 (C)
Operating Modes Automatic, MDI & Manual
Display Modes Program Contents, Position Information, Program, Check, Parameters, Tool Hit Counter, Self Diagnostics, Interlock Displays Oil Temperature, Door Open
