33 Ton Amada Vipros 345 Turret Punch Press

Equipped with Fanuc 04PC control, 44 Station 2 Auto-Index Turret

Manufactured in 1994

Machine Number 1263

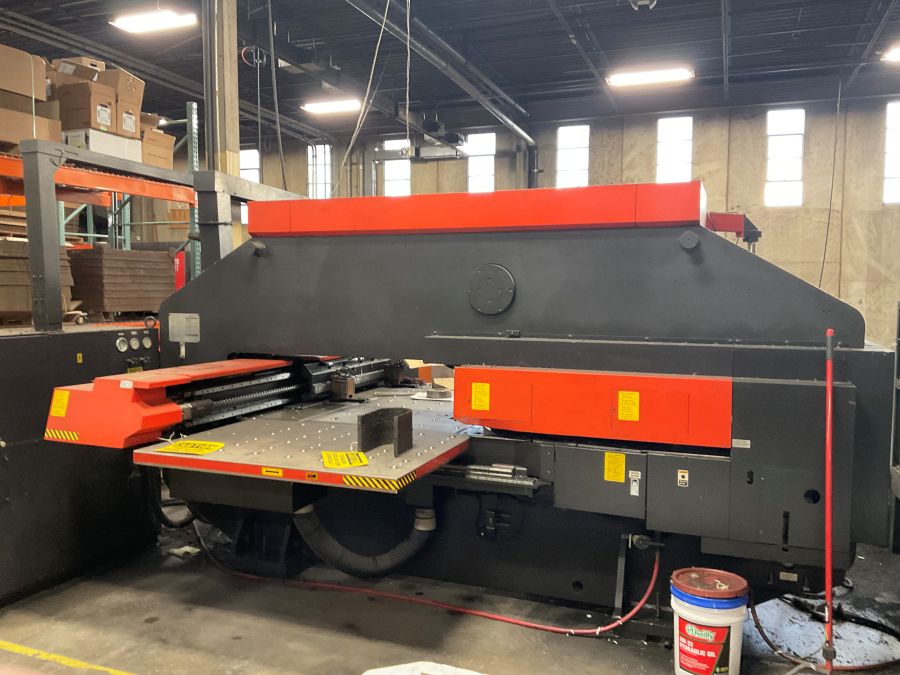

1263-Amada-Vipros-345-Back-Side-2

Image 2 of 4

Amada Vipros Turret Punch Press

The Amada Vipros 345 is a high speed 33-ton hydraulic turret punch press equipped with 44 Station turret with 2 auto-index stations and a Fanuc 04PC control.

Specifications

Model: Vipros 345
Press Capacity: 33 Ton
Standard Sheet Size: 39.37” x 50”
Max. Material: .250”
Max. Sheet Weight: 110 lbs
Hit Rate 2mm (0.078”) Pitch: 320 H.P.M.
Hit Rate 25mm (1”) Pitch: 220 H.P.M.
Hit Rate 8 mm (0.314”) Pitch: 255 H.P.M.
Maximum X & Y Feed Speed: 1968 IPM
Punching Accuracy: ±0.004
Turret Stations: 44 with 2 Auto-Index
Clutch and Brake: Hydraulic
Dimensions: 165.9” x L-R x 108.6” F-B x 81.1” H
Weight: 24,200 lbs

Control Specifications

Model: Fanuc 04PC & PHNC CNC Control

Equipped With

Chiller
