33 Ton Amada Pega 357 Turret Punch Press
58 Station 2-Auto-Index Turret and Fanuc 04PC Control
Manufactured in 1996
Request Quote

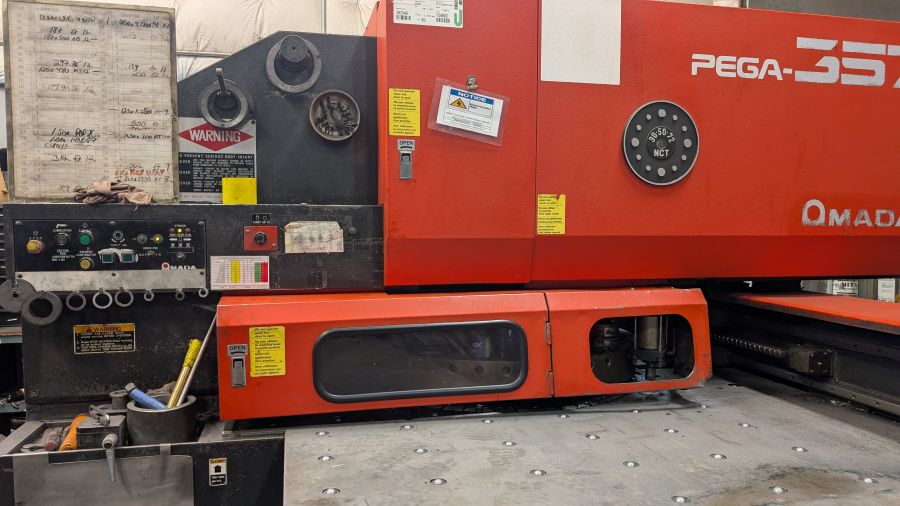

Pega 357 Turret Punch Press
The Amada Pega 357 is a mechanical 33 ton turret punch press capable of processing sheets up to 4′ x 12′ with one auto repositioning cycle. All of the Pega series machines are known for reliability and low maintenance costs. This Pega 357 features a hydraulic clutch and brake system, Fanuc based 04PC control and 50″ throat.
Machine Specifications
Frame design: Bridge
Press capacity (tons): 33 Ton
Type of punching force: Mechanical
Type of clutch and brake: Hydraulic
X axis travel (Inches): 72″
Y axis travel (Inches): 50″
Throat depth (Inches): 50″
Maximum sheet size with one auto-reposition: 50″ x 144″
Type of computer control: Fanuc 04PC
Tape format: E.I.A. or A.S.C.I.I.
Programming mode: Absolute/incremental
Smallest programmable increment: .001″
Axis & turret drive: AC motors brushless/servo
Number of turret stations: 58 Stations with 2 Auto-index
Turret rotation: 30 RPM
Maximum hole diameter: 4 1/2″
Maximum material thickness (Gauge): 1/4″ Mild Steel
Tool type: Thick
Turret Specification Stations
36: 1/2″
12: 1.25″
4: 2″
2: 3.50″
2: 4.50″
2: 1.25″AI
Strokes per minute: 350
Axis speed: 2,000 IPM
Hits per minute 1″ moves: 200
Nibbling hits per: 350 IPM
Main motor: 5 HP 3/60 Volts
Machine weight: 11.6 Tons
Approximate dimensions: 181″ L x 148″ W X 88″ H
