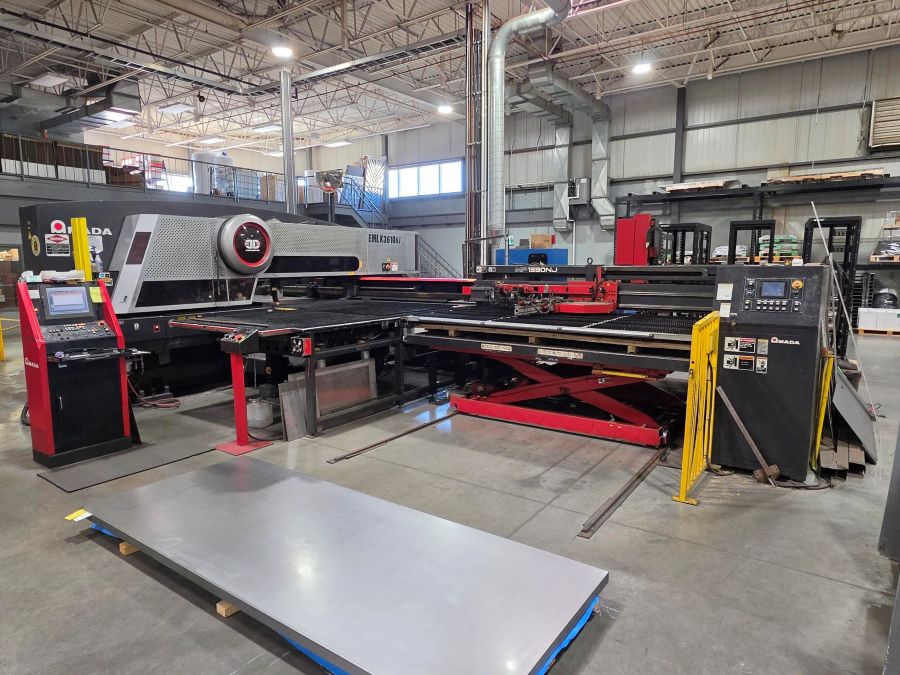

33 Ton Amada EMLK 3610NT Turret Punch and 4000-Watt Hybrid Laser Combination Machine
with 58 Station 4 Auto-Index Turret and Amada MP1530NJ Load/Unload
Manufactured in October 2010
Machine Number 1348
Request Quote
Amada EMLK-3610
The Amada EMLK 3610NT is a turret punch and hybrid laser combination machine. This machine is equipped with the same fully electric servo punching system as the EMK with a capacity of 33 Tons and a Fanuc laser with an output of 4000-Watts. The turret features the large 4.5″ auto-index stations of the EMK as well. This machine is equipped with an MP-1530 NJ for automated loading and unloading.
Specifications
Tonnage: 33 US tons
Turret Configuration: 58 station 4 auto-index “king turret”
Motion axis: X, Y, TL, Z, B, T & C
Working Area
X axis: 100″ laser, 120″ punching
Y axis: 60″ laser, 72″ punching
Z axis: 14.9″
Maximum Thickness
Mild Steel: ¼”
Stainless Steel: ¼”
Aluminum: ¼”
Maximum Work Weight: 330 lbs.
Rapid Traverse (Inches per minute)
X axis: 3,937
Y axis: 3,149
Simultaneous: 5,051
Z axis: 2,362
Maximum Cutting Speeds (Inches per minute)
X axis: 780
Y axis: 780
Hit Rate (Hits per minute)
High speed marking: 1800
1″ moves: 400
Repeatability: +/- 0.00027″
Positioning Accuracy: +/- 0.0012″/39.37″
Punching Accuracy: +/- 0.004″
Z axis sensor: HS-2003
CNC: AMNC-PC-OS Windows
Laser: AF-4000E
Equipped With
Amada MP1530NJ Load/Unload
Chiller
