33-Ton Amada EMK-3612 M2 Servo-Driven CNC Turret Punch Press

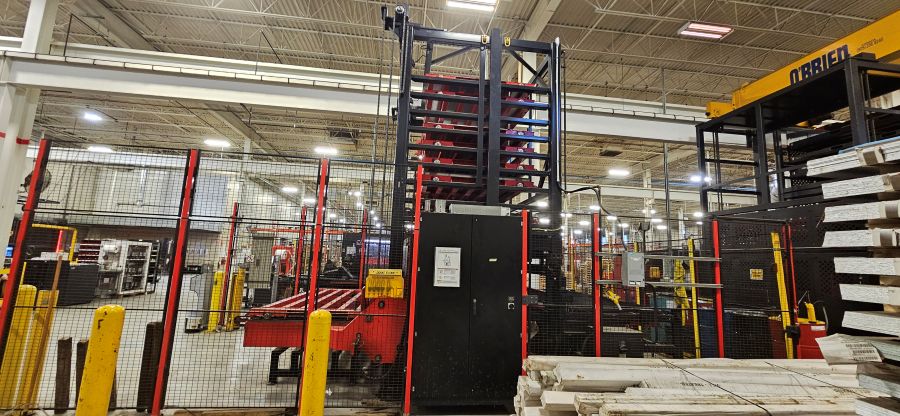

Equipped with Amada ASIII MP-300 Automation
Manufactured in December 2014
Machine Number 1280
Request Quote
The Amada EMK M2 Servo turret punch press
The Amada EMK M2 is the latest version of Amada’s popular “Electro-Mechanical” fully electric servo drive turret punch press. All EMK series machines feature a 33-Ton dual drive system and a full 5′ x 10′ table to process a full size sheet without the need for auto-repositioning. Also, the EMK is equipped with four auto-index stations including two of the industries largest 4 and 1/2 AI stations.
Specifications
Press Capacity: 33 Tons
Axis Travel
X:120″
Y: 60″
Maximum Sheet Size (with one reposition): 240” (X) 60″ (Y)
Maximum Sheet Weight
F1: 110 lbs.
F4: 330 lbs.
Feed Clearance: 0.984″
Stroke Length: 1.45″
Maximum Sheet Thickness: 0.187″
Punching Accuracy
Standard: +/- 0.004″
High Accuracy Mode: +/- 0.0027″
Table Positioning Speed
X: 3,937 inches per minute
Y: 3,150 inches per minute
Turret Rotation Speed: 30 RPM
Punching Hit Rate 1″ pitch (0.2″stroke)
X: 500 hits per minute
Y: 300 hits per minute
Nibbling hit rate 0.080 pitch (0.2″ stroke)
X: 745 hits per minute
Y: 410 hits per minute
Marking hit rate 0.197″ pitch (0.055″ stroke): 1,800 hits per minute
Electric power required: 200/208 3 phase
Machine weight: 46,300 lbs.
Equipped With
Amada ASIII MP-300 Automation
58 station turret with two 4.5″ Auto-Index stations and two standard 1 ¼” Auto-Index stations
Power vacuum slug system
Brush table
Free standing PC-Based network CNC control
