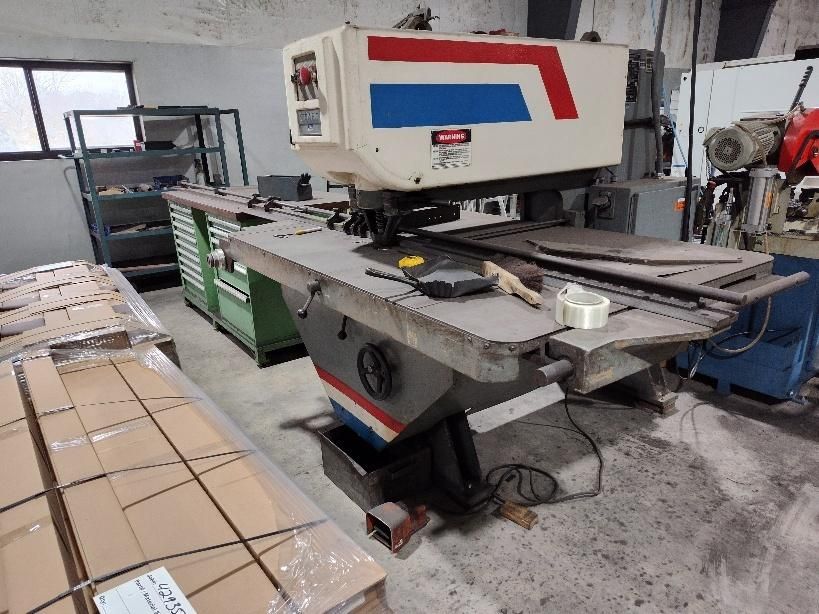

30 Ton Strippit Super 30/30 Punch
Manufactured in 1989
Request Quote
Strippit 30/30
The Strippit 30/30 is a 30 ton, single station, turret that accepts Strippit thin style tooling. This machine includes the tool holders.
Specifications
Tonnage: 30 Ton
Throat Depth: 30”
Max. Hole Diameter: 3.5” dia. in 12 ga.
Max. Material Thickness: 1” dia. in .250
Table Size: 72” W x 48” D
Sheet Size: 30” x 30”
Gauging with Stops: 30” x 30”
Stroke Length: .625”
Hits per min. 165
Motor: 1HP
Table Adjustment: 2.25”
Approx. net weight: 6500 lbs.
Equipped With
Adjustable Fingers
1-1/4”, 3-1/2” & 5” Quick Change Tool Holders
Remote Foot Switch
Misc Tooling
Toolbox with Die Inventory
