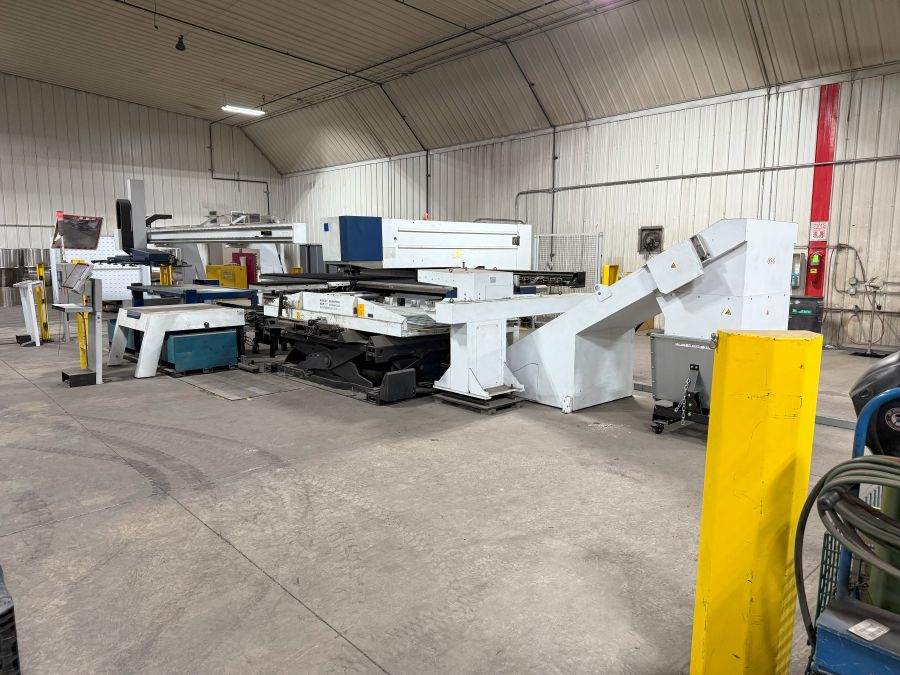

25 Ton Trumpf TruPunch 5000 Large Format Punching Machine
With SheetMaster Load and Unload System
Manufactured in July 2016
Request Quote
Trumpf TruPunch 5000
TruPunch machines from TRUMPF offer you the flexibility to process a uniquely diverse range of parts. The many and varied applications stretch from simple to complex sheet metal parts with extensive forming and excellent surface and edge quality. This means you can process a multitude of different parts entirely on one machine. The TruPunch 5000 is the market leader in productivity and part quality. Its total forming ability and custom automation guarantee its suitability for the broadest range of applications. This machine also features skeleton-free processing.
Specifications
Frame Design: J-Frame
Press Capacity: 25 Tons
Punching Mode, X Axis: 3050 mm
Punching Mode, Y Axis: 1550 mm
Maximum Material Thickness: 8 mm
Maximum Workpiece Weight: 280 kg
Maximum Stroke Rate
Punching: 1350 HPM
Marking: 3000
Additional Information
Maximum number of Tools/Clamps: 21 pieces / 4 pieces
Tool Change Time: 0.3 sec
Type of Tooling; Trumpf
Automatic Sheet Repositioning: Yes
Type of CNC Control: Siemens
Type of clutch and brake: Fully Hydraulic
Main Supply: 460 V 60 Hz
Connected Load: 38 kVA
Full Load Current: 55 A
Equipped With
Trumpf SheetMaster Load/Unload System
QuickSharp
QuickSet
Misc Tooling
Misc Spare Parts
