25 Ton Trumpf TruPunch 5000-1600 Punching Machine
with Trumpf SheetMaster System
Manufactured in 2009
Machine Number 1324
Request Quote
Trumpf TruPunch 5000
TruPunch machines from TRUMPF offer you the flexibility to process a uniquely diverse range of parts. The many and varied applications stretch from simple to complex sheet metal parts with extensive forming and excellent surface and edge quality. This means you can process a multitude of different parts entirely on one machine. The TruPunch 5000 is the market leader in productivity and part quality. Its total forming ability and custom automation guarantee its suitability for the broadest range of applications. This machine also features skeleton-free processing.
Specifications
Frame Design: J-Frame
Press Capacity: 25 Tons
Punching Mode, X Axis: 3050 mm
Punching Mode, Y Axis: 1550 mm
Maximum Material Thickness: 8 mm
Table Axis Feed Rate: 4600 IPM
Maximum number of tool: 21 pieces
Tool Change Time: 0.7 sec
Type of Tooling; Trumpf
Automatic Sheet Repositioning: Yes
Type of CNC Control: Siemens
Type of clutch and brake: Fully Hydraulic
Maximum Stroke Rate
Punching: 1200 HPM
Marking: 2800
Equipped With

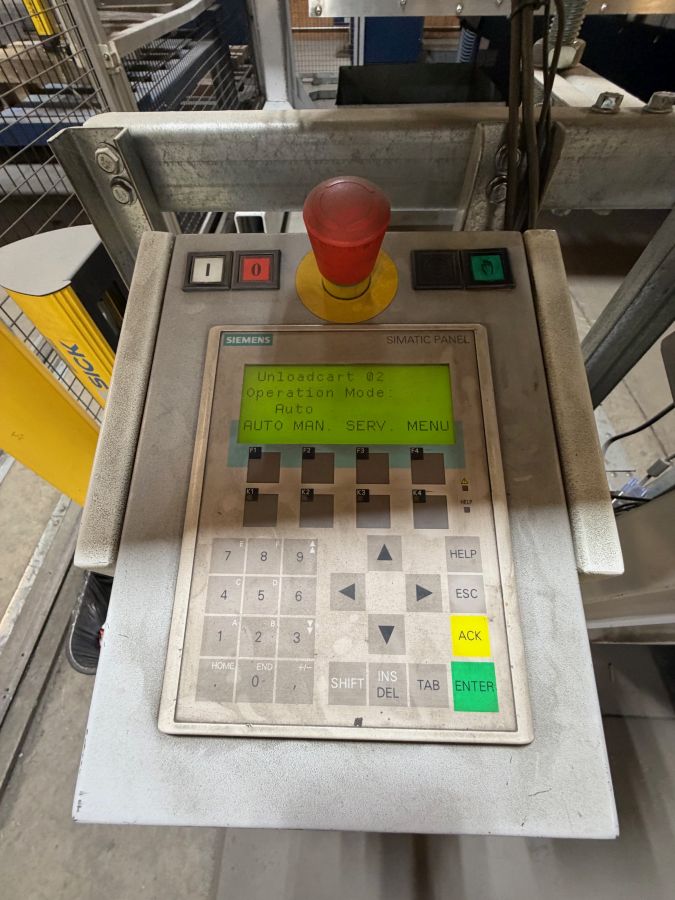

Trumpf SheetMaster
Trumpf GripMaster
