23-Ton Strippit Fabri-Center FC-1000XP CNC Turret Punch

Thin-Style Turret

Manufactured in 1992

Machine Number 1285

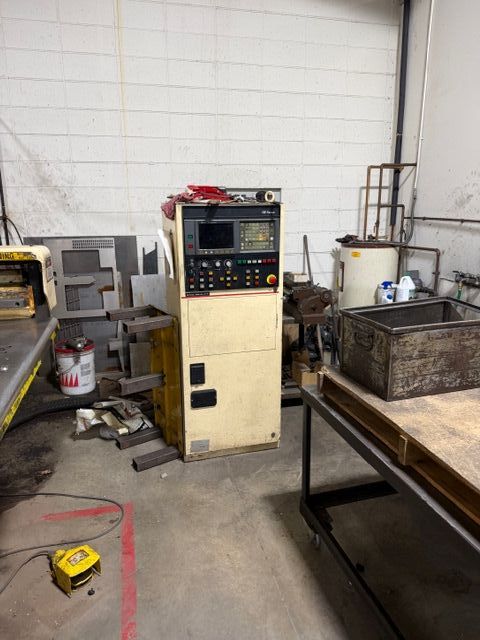

1285-Strippit-Fabri-Center-1000XP-Control

Image 2 of 8

Strippit Fabri-Center

The Strippit FC-1000XP is a C-Frame CNC turret punch that has a 20 station 2-Auto-Index thin style turret.  It has a punching capacity of 23 tons and a max workpiece size of 98.4″ x 78.74″ with reposition and sheet rotation.

Specifications

Punching capacity: 23 Tons (20.5 metric)
Maximum Material Thickness: 0.187” (5mm)
Maximum Workpiece Size (with Reposition at .187”): 98.4” x 39.37” (2500 x 1000mm)
Maximum Workpiece Size (with Reposition and Sheet Rotation): 98.4” x 78.74”
Nominal Sheet Size: 49.2” x 39.37” (1250 x 1000mm)
Maximum Workpiece Weight: 205 lbs. (93 kg)
Press Drive Motor: 5 HP (3.75 kW)
Axis Drives (X and Y): Brushless Servo
Turret Drive: Bi-Directional/Brushless Servo
One Station Index Time: .5 sec. Typical
Maximum Axis Speed: Up to 3350 IPM
Production Rate/1” Centers: 330 H.P.M. Material Thickness < .125”
Production Rate/1” Centers: 240 H.P.M. Material Thickness > .125”
Contour Nibbling Hit Rate: 330 H.P.M.
Finished Part Accuracy: ± 0.004”
Finished Part Repeatability: ± 0.002”
Positioning Accuracy: ± 0.001”

Machine Dimension (with Control)

Width: 136”
Depth: 157”
Height: 86”
Machine Weight: 23,050 lbs.

Turret Configuration

4 Station 3.5”
16 Station 1-1/4”

Equipped With

2 Auto-Index Stations
GE Fanuc Control
Misc Tooling
