22-Ton Amada Vipros 255 Turret Punch Press
Equipped with Fanuc 18P Control, 31 Station 3 Auto-Index Turret
Manufactured in 2000
Request Quote

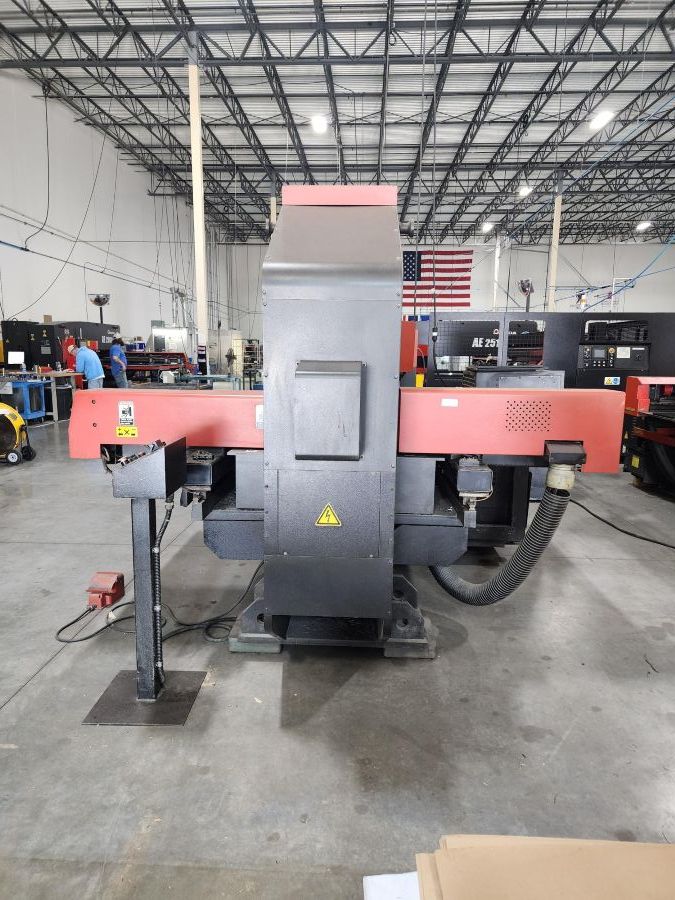

22-Ton Amada Vipros 255 Hydraulic Turret Punch Press
The Amada Vipros 255 is a high speed 22-ton hydraulic turret punch press equipped with three auto-index stations and a Fanuc 18P control. The Fanuc 18P control is capable of running more sophisticated forming tools than the 04PC control previously offered on Vipros series machines. Also, the 255’s higher hit rate and table speeds make it a more productive machine than standard Amada Vipros series machines. This machine features a brush table for quiet mark free material processing.
Specifications
Model: Vipros 255
Tonnage: 20 tons (22 US tons)
Turret stations: 31 with 3 Auto-Index (AI- two (2) 1-1/4” and one (1) 2”)
Tool capacity: 31 with 3 Auto-Index stations
Turret rotation speed: 60 RPM
Maximum hole diameter: 2”
SPM accuracy on 1” centers: 340@315”
Ram stroke: + / – .0027”
Strokes per minute: 720@118”
Ram stroke: .079 pitch
Maximum parting speed, IPM: 3,229
(Perimeter punching)
Index-able feed clearance: .787”
Maximum material thickness: 0.135 brush table
Maximum workpiece dimensions: 50” x 100” with one Auto-Reposition
Throat depth: 50”
Table travel dimensions: 50” x 50”
Control Specifications
Model: Fanuc 18P Controller
Control Function X, Y, T & C
Input Method MDI, 31/2″ Floppy, DNC
Minimum Command Unit 0.001″ (X, Y) .010 (C)
Minimum Travel Unit 0.001″ (X, Y) .010 (C)
Operating Modes Automatic, MDI & Manual
Display Modes Program Contents, Position Information, Program Check, Parameters, Tool Hit Counter, Self Diagnostics, Interlock Displays Oil Temperature, Oil Pressure, Door Open
