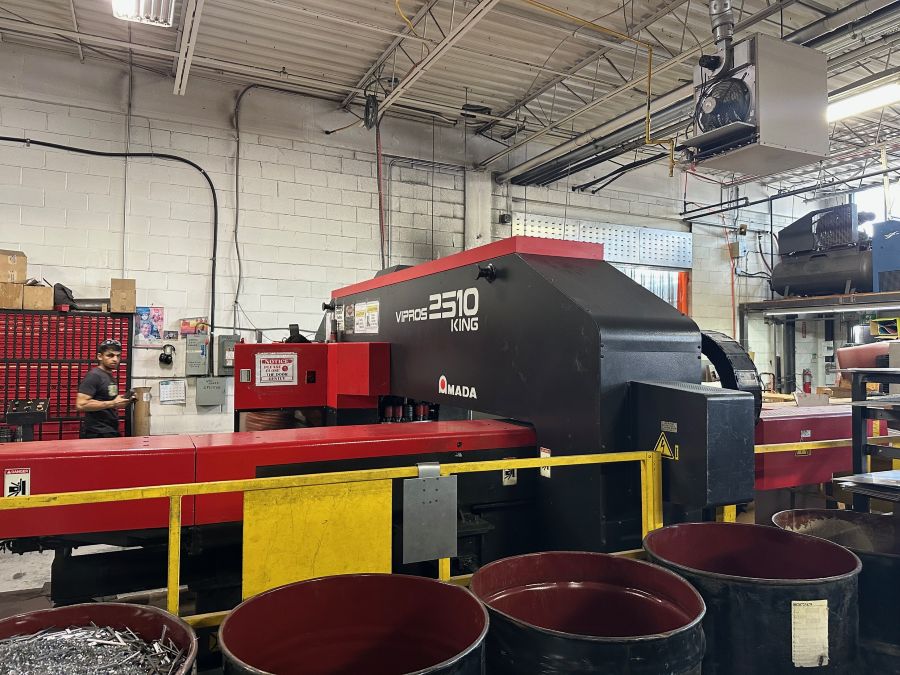

22 Ton Amada Vipros 2510 King Turret Punch Press
Equipped with 31 Station 3 Auto-Index Turret and 4′ x 8′ Ball Table
Manufactured in 2003
Machine Number 1212
Request Quote
Amada Vipros 2510 King Turret
The Vipros 2510 King is a high-speed 22-ton Hydraulic turret punch press with 4′ x 8′ table and 3-auto-index station turret. This machine is similar to the Vipros 255, but the larger table allows for running a 4′ x 8′ sheet without a reposition.
Specifications
Press Capacity: 22 Tons
Press Stroke: 1.575
Maximum Sheet Size: 50.0″ (Y) x 196.0″ (X) W/Auto-Repo
Maximum Axis Travel: 50.0″ (Y) x 98.4″ (X)
Max. Linear Table Speed: 3,937 IPM (X), 3,149 IPM (Y)
Punching Accuracy:
0.0027″ (standard)
0.002″ (high accuracy mode)
Positioning Accuracy: 0.0039″
Repeatability: 0.0006″
Stroke Rate (X/Y) Pitch Stroke Stroke Rate
0.079″ 0.118″ 900/660
1.000″ 0.315″ 350/280
Maximum Hole Diameter: 3.5″
Tool Type: Amada Thick Turret
Turret Rotation Speed: 35 RPM
Turret Capacity: 31 Stations (3 auto-index)
Control: Fanuc 18P (with PHNC)
