22-Ton Amada EM-2510NT Turret Punch Press
with 58 Station 2 Auto-Index Turret
Manufactured in 2008
Machine Number 1349
Request Quote
EM-NT Series – Servo-Electric Turret Punch Press

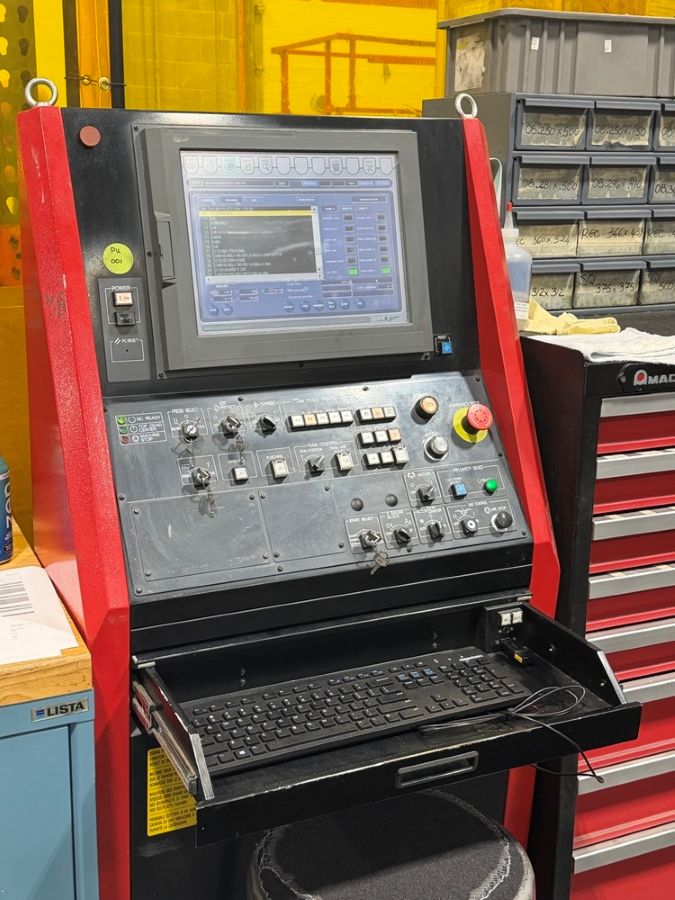

The cutting-edge EM Series turret punch press uses twin AC servo drives directly coupled to the drive shaft. Amada’s third generation drive system combines the simplicity of the original clutch and brake technology with the high speeds of the fastest hydraulic ram driven systems. The result is unmatched performance, superior reliability, and lower operating costs. Excelling in lean environments the EM can deliver 500 HPM (1″ centers), slug pull prevention, forming control, large table size and a full featured PC based network control. This machine has a 58 station 2 auto-index turret.
Technical Specifications
Press Capacity: 22 Tons
Maximum Sheet Size (without reposition): 50” x 100”
Maximum Sheet Size (with one reposition): 50” x 196.85”
Maximum Material Thickness: ¼”
Turret Stations: 58 stations 2 Auto-Index stations
Axis Travels:
X-Axis: 98.4”
Y-Axis: 50”
Punch Stroke: 1.65”
Performance and Speeds
Hit Rate: 500 Hits per Minute on 1” centers
Feed Rate:
X-Axis: 3937 IPM
Y-Axis: 3150 IPM
Drive System: Twin AC Servo Direct Drive
