22 Ton Amada AE-255NT AC-Servo Turret Punch Press
58 Station 2 Auto-Index Turret
Manufactured in 2018
Machine Number 1230
Request Quote
Amada AE-255NT
The AE-NT Series is packed with a wide variety of standard
features to ensure that parts are produced faster, easier and
more economically.
• The AE-NT Series utilizes an AC servo motor to
drive the ram (eliminating hydraulic power supply
and hydraulic fluid chiller).
• Electrical consumption is less than one-half of
comparable hydraulic machines.
• The AE-NT Series offers significantly faster punching
speeds than mechanical turret punch presses while
providing superior ram motion control.
• Space-saving design makes the most of valuable floor space.
• AE255-NT model has 4´ x 4´ sheet capacity (Processes 4´ x 8´
sheets with reposition)
Specifications
Tonnage: 20 metric/ 22 U.S. tons
Press Drive System: Single motor AC servo drive
Maximum Stroke Length: 1.65″
Maximum Material Thickness
Standard brush table: 0.12”
Optional high density brush table: 0.25″
Travel Range: 50″ x 50” (50” x 98” w/ 1 Auto Repo)
Maximum Feed Rate
X axis: 3,150 inches per minute
Y axis: 2,362 inches per minute
Maximum Material Weight
F1 (high speed): 110 lbs.
F4 (low speed): 331 lbs.
Maximum Hit Rate
X axis: 370 hits per minute (1″ pitch at 0.118″ stroke)
Y axis: 275 hits per minute (1″ pitch at 0.118″ stroke)
Punching Accuracy: +/- 0.004″ (+/- 0.002″ in fine accuracy mode)
Turret Rotation Speed: 30 RPM
Auto-Index Rotation Speed: 60 RPM

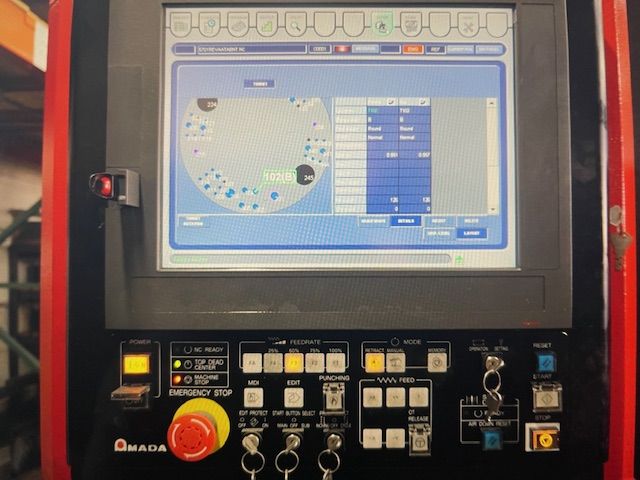

NC Control: AMNC/PC “NT”
Power Requirements: 19 kVA
Maximum Air Consumption: 750 NI/min.
Mass of Machine: 28,000 lbs.
Table Style: Brush Table
Turret Specifications
Layout Pattern: 58 stations 2 Auto-Index
Maximum Tool Size: E (4 ½”)
Number of type A (1/2″) Stations: 36
Number of type B (1-1/4″) Stations: 12
Number of type C (2″) Stations: 4
Number of type D (3 1/2″) Stations: 2Number of type E (4-1/2”) Stations: 2
Number of type G (1-1/4″) Auto-Index stations: 2
Number of type H (2″) Auto-Index stations: 0
