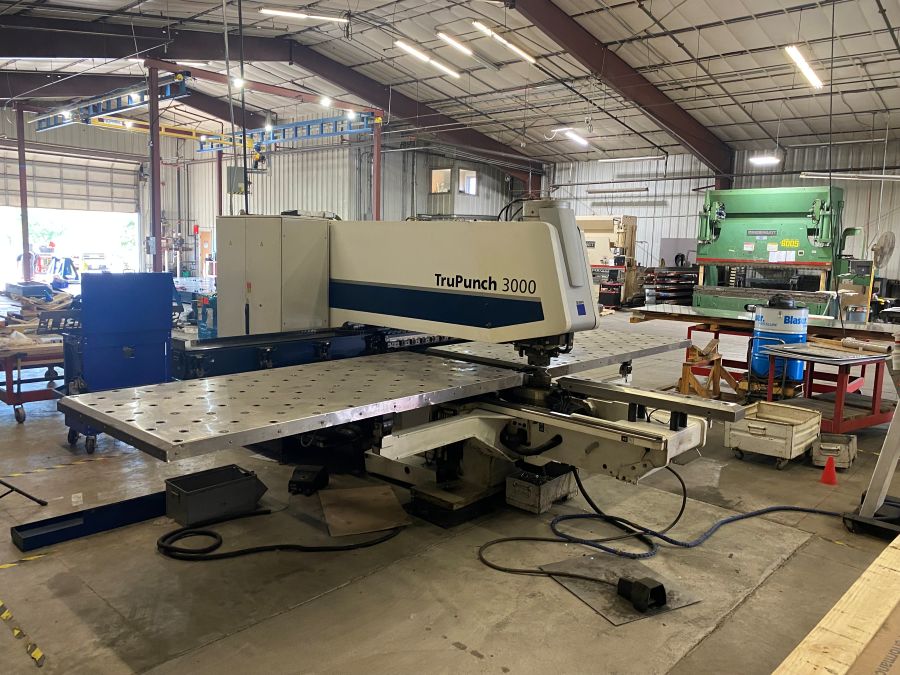

20 Ton Trumpf TruPunch 3000 – Medium Format Punching Machine
Manufactured in 2012
Machine Number 1238
Request Quote
Trumpf TruPunch 3000 Series
The Trumpf TruPunch 3000 is a fully electric punching machine. Like all Trumpf punches, the TruPunch 3000 ″auto-indexes” all tools through its rotating punching head. It also uses the rail magazine for fast tool changes. This Trumpf TruPunch 3000 is the medium format which has a working area of 100″ x 50″.
Specifications
Maximum Punching Force: 20 Tons
Working Area: 100″ x 50″
Maximum Sheet Thickness: 1/4″
Maximum Workpiece Weight: 330 lbs
Speeds:
X-Axis: 3543 ipm
Y-Axis: 2362 ipm
Simultaneous (X and Y): 4252 ipm
C-Axis: 330 rpm
Maximum Stroke Rate:
Punching: (E= 1mm): 1000 1/min
Marking: ca. 2500 1/min
Maximum Number of Tools: 18 tools with 2 clamps
Tool Change Time (Multitool): 0.3 s
Accuracy:
Positioning Accuracy: ± 0.04”
Repeatabilty Ps: ± 0.0012”
Space Requirements: 197” x 256”
Main Supply: 460V/60 Hz
Connected Load: 18 kVA
Equipped with
Trumpf Control
