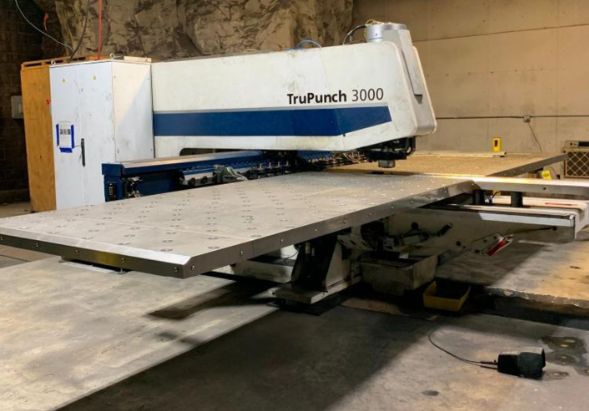

20 Ton Trumpf TruPunch 3000 Large Format Punching Machine
Manufactured in 2011
Request Quote
Trumpf TruPunch 3000 Series
The Trumpf Trupunch 3000 is a fully electric punching machine. Like all Trumpf punches, the Trupunch 3000″auto-indexes” all tools through its rotating punching head. It also uses the rail magazine for fast tool changes. This Trumpf TruPunch 3000 is the large format which has a working area of 3000 mm x 1500 mm.
Specifications
Maximum Punching Force: 20 US Tons (180 kN)
Working Area-Punching operation: 118″ x 59″
Maximum Sheet Thickness: 1/4″
Maximum Stroke Rate
Punching: (E= 1mm): 900 1/min
Marking: ca. 2500 1/min
Maximum Number of Tools (3 clamps): 17 pieces
Tool Change Time (Multitool): 0.3 s
Space Requirements: 20′ x 24′
Voltage: 460V
Equipped with
Trumpf Control
Riedel Cooling Unit
