20 Ton Trumpf TruPunch 2020 Full Rotation Punch Press
Manufactured in June 2007
Request Quote
Trumpf 2020
The TruPunch 2020 combines high-productivity punching technology with space-saving integrated automation. With the TruPunch 2020 you can produce single pieces just as quickly, easily and economically as small and medium-sized runs while easily meeting your high standards for quality and productivity.
Technical Data
Model: Trumpf TruPunch 2020
Work area (X x Y): 100″ x 50″
Capacity
Maximum Sheet Thickness: 0.25″
Maximum Punching Force: 20 Tons
Active Presser Foot: Up to 2.5 Tons
Maximum Workpiece Weight: 330 lbs.
Speeds
X axis: 3543 ipm
Y axis: 2362 ipm
Simultaneous (X and Y): 4252 ipm
C axis: 180 rpm
Maximum stroke rate when punching (E=1 mm): 900 1/min
Maximum stroke rate when marking (approximate): 2,200 1/min
Maximum Acceleration
X axis: 472 in/s²
Y axis: 315 in/s²
C axis: 200 1/s²
Tools

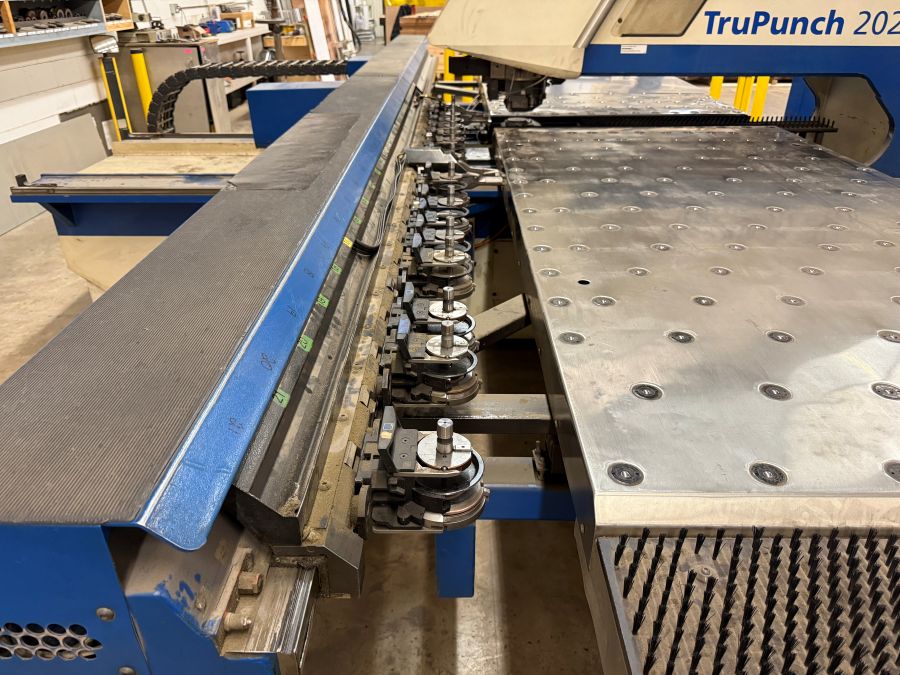

Linear Magazine: 19 tools with 2 clamps
No. when using Multitool: 19-190 tools
Multitool: 5/10 station
Tool Change Time
Single tool: < 3.5s
MultiTool: < 0.9s
Accuracy
Positioning accuracy Pa: +/- 0.004 in.
Repeatability Ps: +/- 0.001 in.
Programmable Parts Chute
Maximum part size when using fixed chute: 8 x 8 in.
Space Requirements
Including safety: 293 x 254 in.
Power Consumption
Average power consumption (approximate): 9 kW
In standby mode (approximate): 0.7 kW
Main Supply: 460V/60Hz
Connected Load: 22 kVA
Control Voltage: 24 V=
Air Supply: 95 P.S.I.
