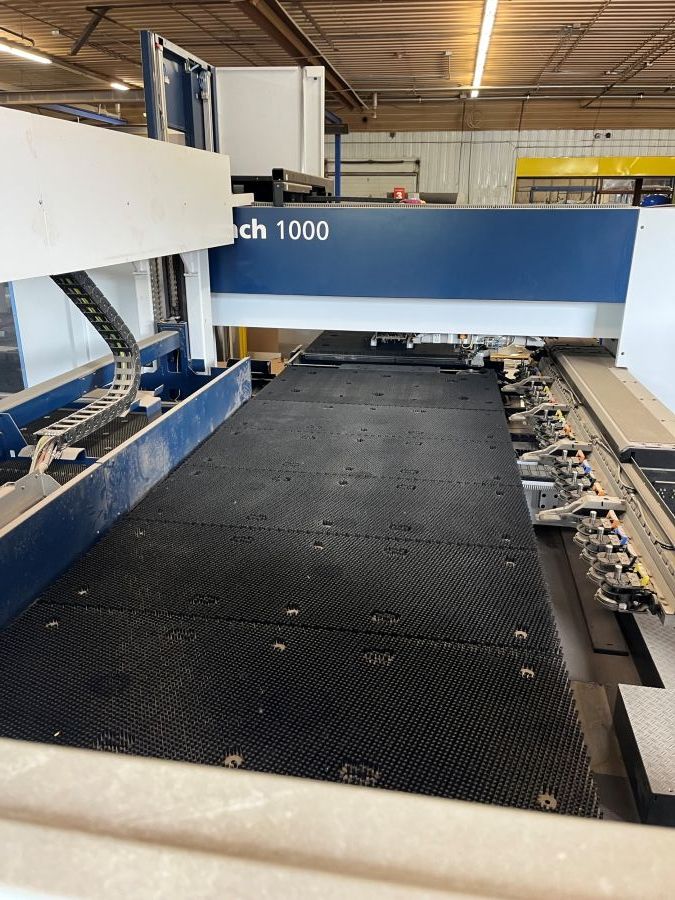

20 Ton Trumpf TruPunch 1000 S19 Large Format CNC Punching Machine
Equipped with Trumpf SheetMaster Compact and SortMaster Compact
Manufactured in November 2024
Machine Number 1306
Request Quote
Trumpf 1000 Series
The Trumpf TruPunch 1000 (S19) Large Format is a modular CNC punching machine designed for high-speed processing of large sheet metal components. This machine is equipped with the Trumpf SheetMaster compact and SortMaster compact.
Specifications
Model: Trumpf TruPunch 1000 (S19) Large Format
Working Range: 120.1” x 61.02”
Maximum Sheet Thickness: 0.25”
Maximum Effective Punching Force: 18 t
Axis Speed (X and Y Simultaneously): 100 m/min
Maximum Punching Stroke Rate: 600 strokes/min
Maximum Stroke Rate (Marking): 1000-1300 strokes/min
Positioning Accuracy: ± 0.004”
Repeatability: ± 0.001”
Average Power Input in Production: 3.5 kW
Tools
Number of Tools/Clamps: 21 Tools / 3 Clamps
Tool Change Time for Single Tool: 3.2 s
Multitool Tool Changing Time: 2.4 s
Part Removal
Maximum Part Size, Part Removal Flap, Punching: 400 mm x 600 mm
Maximum Part Size, Fixed Chute, Punching (w/ moving table): 180 mm x 180 mm
Equipped With
Trumpf SheetMaster Compact
Trumpf SortMaster Compact
