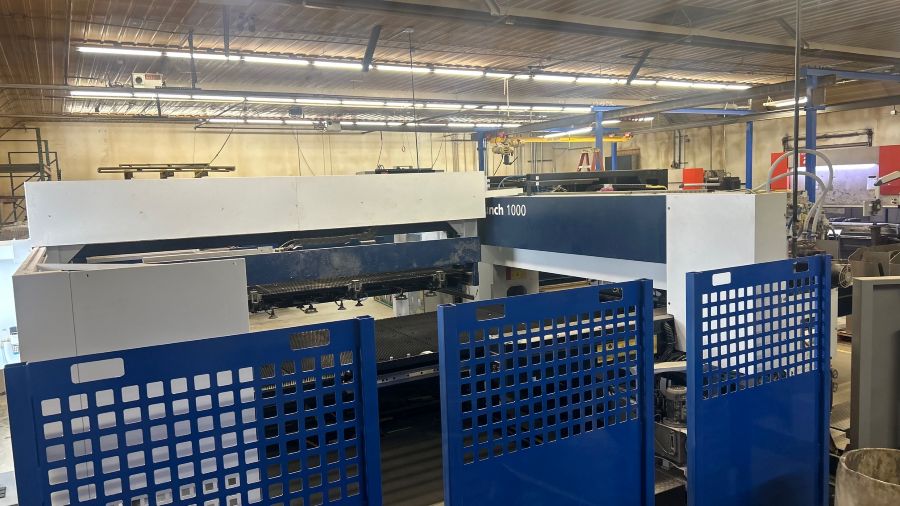

20 Ton Trumpf 1000 S19 Large Format CNC Punching Machine
Equipped with Trumpf SheetMaster Compact and Trumpf SortMaster Compact
Manufactured in 2024 – Installed in 2025
Machine Number 1287
Request Quote
Trumpf 1000 Series
The Trumpf TruPunch 1000 (S19) Large Format is a modular CNC punching machine designed for high-speed processing of large sheet metal components. This machine is equipped with the Trumpf SheetMaster compact and SortMaster compact.
Specifications
Model: Trumpf TruPunch 1000 (S19) Large Format
Working Range: 120.1” x 61.02”
Maximum Sheet Thickness: 0.25”
Maximum Effective Punching Force: 18 t
Axis Speed (X and Y Simultaneously): 100 m/min
Maximum Punching Stroke Rate: 600 strokes/min
Maximum Stroke Rate (Marking): 1000-1300 strokes/min
Positioning Accuracy: ± 0.004”
Repeatability: ± 0.001”
Average Power Input in Production: 3.5 kW
Tools
Number of Tools/Clamps: 21 Tools / 3 Clamps
Tool Change Time for Single Tool: 3.2 s
Multitool Tool Changing Time: 2.4 s
Part Removal
Maximum Part Size, Part Removal Flap, Punching: 400 mm x 600 mm
Maximum Part Size, Fixed Chute, Punching (w/ moving table): 180 mm x 180 mm
Equipped With
Trumpf SheetMaster Compact
Trumpf SortMaster Compact
