This machine has been sold-Please contact us for similar machines

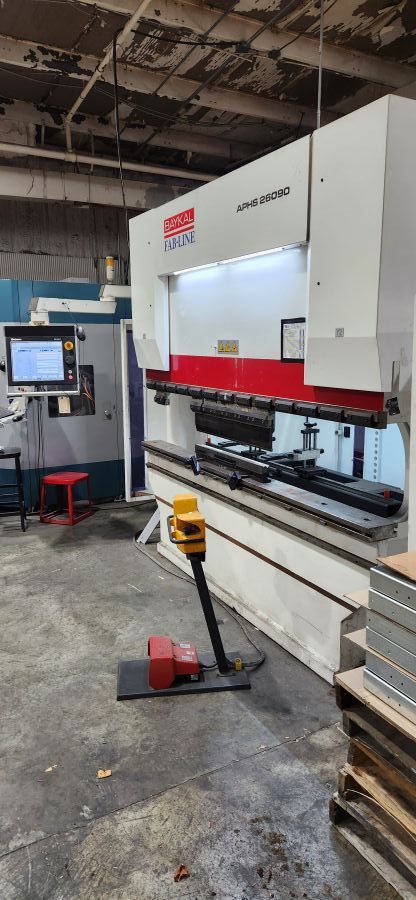

SOLD-90 Ton Baykal APHS 26090 Hydraulic Press Brake
Manufactured in December 2017
Machine Number 1226
Request Quote
Baykal Press Brakes
Baykal APHS 26090 is a hydraulic press brake with a 90 ton capacity and a CNC control and backgauge. APHS press brakes are fast, accurate, and repeatable providing a productive and cost efficient machine for any shop.
Specifications
Capacity: 90 Tons
Bending length: 2600 mm
Maximum stroke: 260 mm
Length: 3000 mm
Width: 1800 mm
Height: 2500 mm
Machine Weight: 7100 kg
Top Tool Weight: 55 kg
Bottom Tool Weight: 85 kg
Main Voltage: 230-460V/60Hz/3Ph
Nominal Power: 7.5 kW
System Pressure: 273 bar
Equipped With
Delem Control and Backgauge
Backgauge is CNC X-Axis and Manual R-Axis
Accepts Euro and American Style Tooling
