sold-Amada HFE-M2-8025 press brake
Equipped with 8-Axis CNC Amada AB-Pad control and backgauge
New in 2011
Request Quote

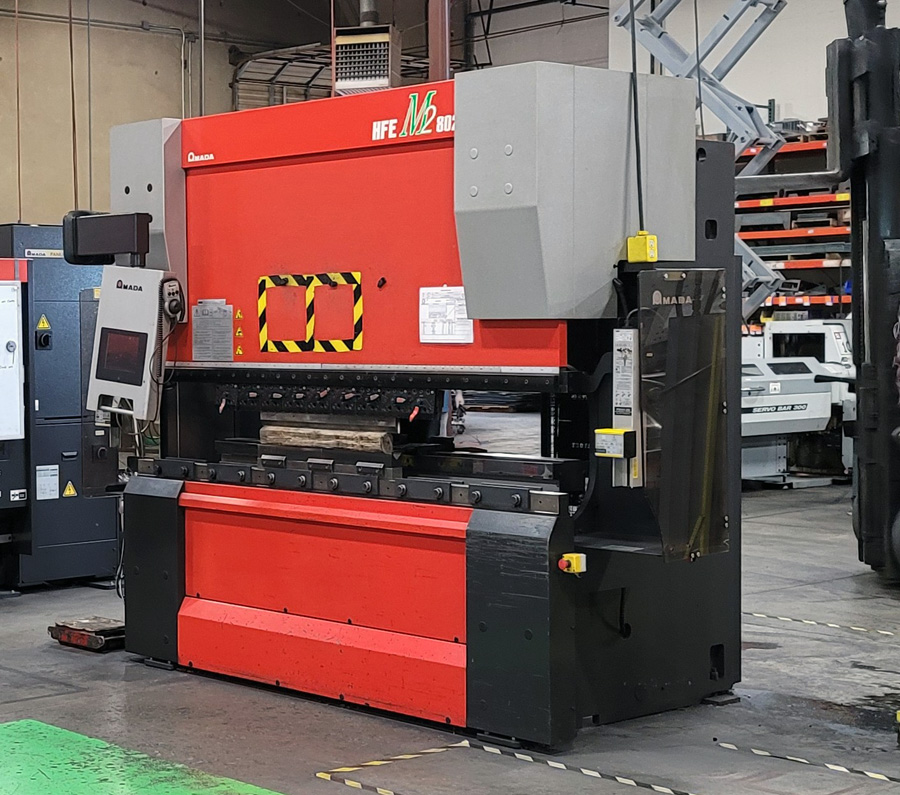

The Amada HFE-M2 press brake
The Amada HFE-M2 series is the latest of Amada’s popular line of hydraulic press brakes that include the HFB and HFE machines. Upgrades include a new control and 8-axis backgauge, plus new electronics throughout the machine. This machine is a 8025 model, which is 88 tons and 8′ long.
Machine Specifications
Maximum tonnage: 90 U.S. Tons
Minimum tonnage: 7.9 U.S. Tons
Working length: 101″
Table width: 2.36″
Working height: 37.8″
Open height: 18.5″
Stroke length: 7.87″
Throat depth: 16.5″
Distance between frames: 82.7″
Oil Capacity: 19.8 Gal
Total length: 149.6″
Total width: 96.3″
Total height: 100″
Total weight: 12,345 lbs.
Power consumption 10.5 kVA
Power: 460 Volts, 60Hz 3 phase
Speeds:
Maximum approach speed: 3.94 inches per second
Maximum bending speed: 0.39 inches per second
Maximum return speed: 30.94 inches per second
