sold-80 Ton x 1530 mm (~5) Bystronic Xpert Press Brake

New in 2018

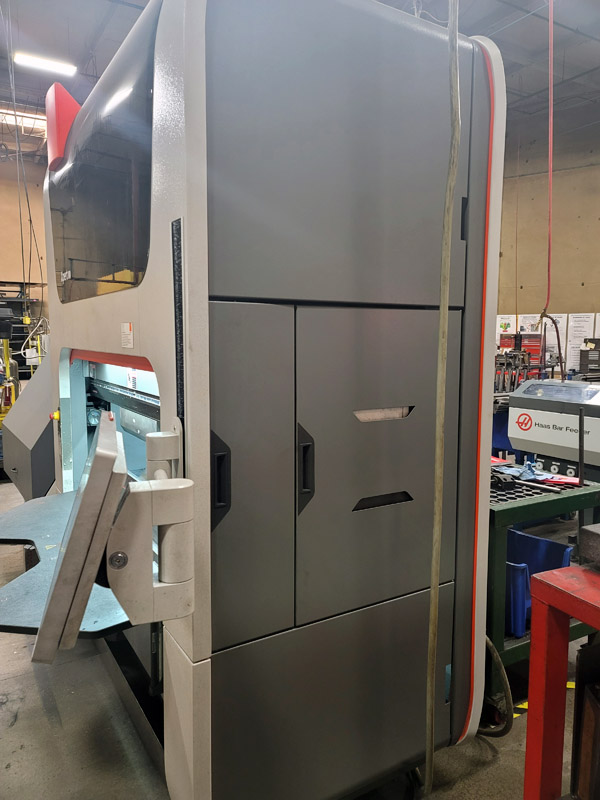

624-Xpert-80-side

Image 7 of 7

Request Quote

The Bystronic Xpert series

The Xpert 80/1530 is Bystronic’s top of the line press brake series in an 80 ton x ~5 size machine. All Xperts feature high acceleration of the upper beam and backgauge, fast set up and low power consumption. Along with Bystornic’s user friendly control and ease of use through ergonomic design.

Machine Specifications

Length: 2,030 mm
Width: 1,700 mm
Height: 2,659 mm
Tonnage: 800 kN
Bending length: 1,530 mm
Standard stroke: 200 mm
Open height: 515 mm
Distance between side frames: 1,570 mm
Table width: 60 mm
Max. backgauge range X-axis: 500 mm

Axes travels

X-axis travel: 300 mm
X-axis speed: 1,500 mm/s
R-axis travel: 100 mm
R-axis speed: 500 mm/s
Z-axis travel: 1,455 mm
Z-axis speed: 2,000 mm/s
Y-approach speed (up to): 300 mm/s
Y-working speed (up to): 25 mm/s
Accuracy Y-axis: 0.004 mm

Requirements

Oil capacity: 200 l
Main motor  power: 15 kW
Weight: 6.5 t
