SOLD-80-Ton Bystronic Mobile Bending Robot Press Brake
6 Axis Kuka Robot with duel load stations
With Xpert 80 Press Brake
Manufactured in 2021
Request Quote

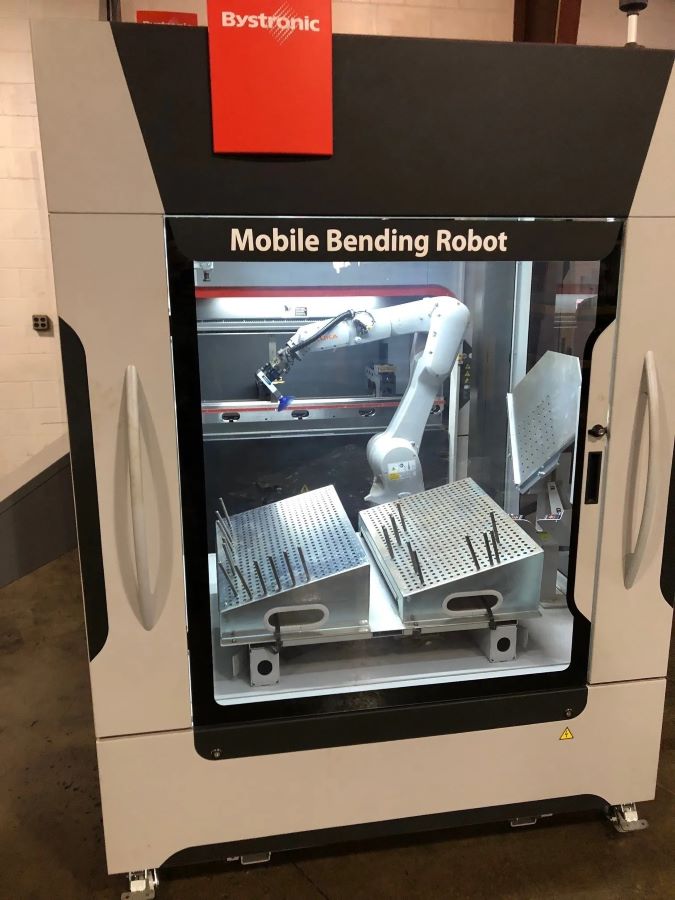

80-Ton Bystronic Mobile Bending Robot Press Brake
Bystronic Mobile Bending Robot seamlessly interfaces with Xpert 80 press brake converting from manual operation to fully automated production in under 10 minutes. With a compact and portable format, the Mobile Bending Cell fits into virtually any manufacturing environment. Manual or automatic? Both are possible with the Mobile Bending Cell: Bend large series fully automatically and complex small series manually. This allows you to stay flexible and make decisions depending on your needs. On-demand automation in confined spaces for maximum flexibility! Mobile press brake Xpert 80 offers a decisive increase in bending length to 60 inches and a press capacity of 88 US tons.
Bending Robot Specifications
Length: 59.8”
Width: 47.3”
Height: 82.3”
Tonnage: 80
Max length approx. incl. bend part side: 74.5”
Max approx.. width incl. door connection: 111.2”
Air Supply: 73-100 psi
Air Consumption: 53 gal/inch
Energy Consumption: 16 Amp
Power Supply: 4hp
Power Supply: 400V
Max Load Capacity of robot: 22 lbs
Maximum part size (approx.) 11.8 x 23.6 inch
Weight: 1.1 Tons
Max Load: 22lbs
Press Brake Specifications
Length: 80.71”
Width: 54.53”
Height: 100”
Tonnage: 88 US Tons
Bending length: 60.2”
Standard stroke: 7.9”
Open height: 20.3”
Distance between side frames: 61.8”
Table width: 2.4”
Max. backgauge range X-axis: 19.7”
X-axis travel: 11.8”
X-axis speed: 3543 in/min
R-axis travel: 3.9”
R-axis speed: 1181 in/min
Z-axis travel: 57.3”
Z-axis speed: 4,724 in/min
Y-approach speed (up to): 10.83 inch/s
Y-working speed (up to): 1.18 inch/s
Accuracy Y-axis: 0.00016 in
Oil capacity: 53 gal
Main motor power: 15 kW
Weight: 14,330 lbs
