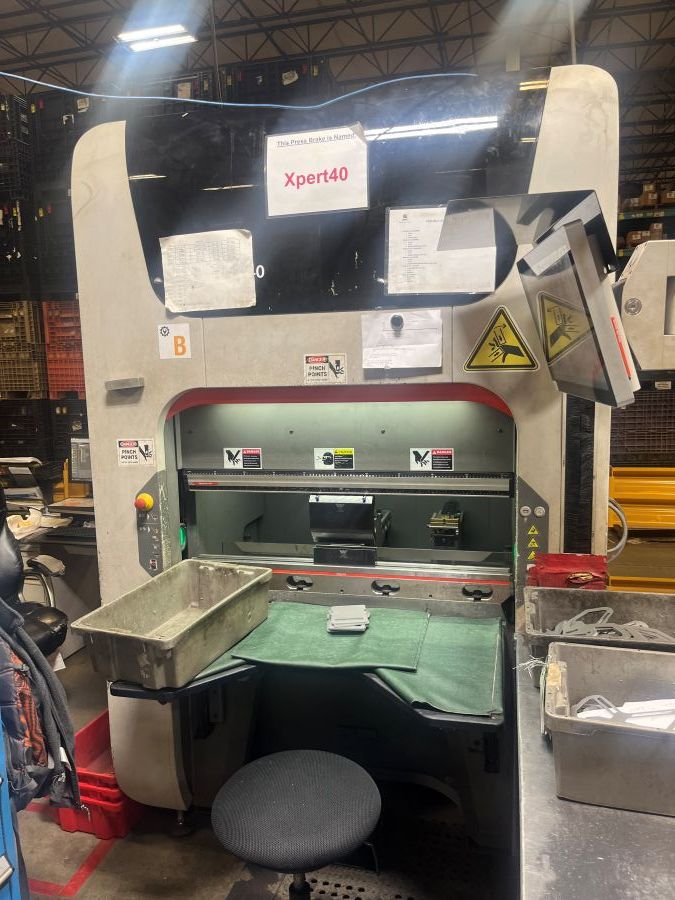

SOLD-40 Ton by 1030 mm Bystronic Xpert 40/1030 Press Brake
Manufactured in 2017
Machine Number 1197
Request Quote
The Bystronic Xpert Series
Bystronic Xperts feature high acceleration of the upper beam and backgauge, fast set up and low power consumption. Along with Bystronic’s user friendly control and ease of use through ergonomic design. Plus, the Xpert series features the unique active crowning feature with multiple cylinders, the only system like it in the industry. The Bystronic Xpert 40 is a compact portable high-speed press brake that is moveable to where you need it, when you need it, which is ideal when space is limited and capacities vary.
Press Brake Specifications
Tonnage: 44 US Tons (40 Metric Tons)
Bending Length: 40.55” (1030 mm)
Standard Stroke: 7.85” (200 mm)
Open Height: 20.25” (515 mm)
Distance Between Side Frames: 41.7” (1060 mm)
Table Width: 2.35” (60 mm)
Max. Backgauge Range X-Axis: 21.65” (550 mm)
X-Axis Travel: 11.8” (300 mm)
X-Axis Speed: 3543 in/min (1500 mm/s)
R-Axis Travel: 3.9” (100 mm)
R-Axis Speed: 1181 in/min (500 mm/s)
Z-Axis Travel: 37.6” (955 mm)
Z-Axis Speed: 4724 in/min (2000 mm/s)
Max. Y Approach Speed: 708.65 in /min (300 mm/s)
Max. Y Working Speed: 59 in/min (25 mm/s)
Y-Position Accuracy: 0.0004” (0.01016 mm)
Oil Capacity: 26.41 Gal (120 L)
Weight: 8820 lbs (4000 kg)
Press Brake Electrical Values
Power of Main Motor: 9 kW
Total Connected Load: 16 kW
Operating Voltage: 3 Ph 480V
Frequency: 60 Hz
Control Voltage: 24 V
Nominal Current Fuse: 32 A
