sold-38.5 Ton x 4′ Amada RG-35S Hydraulic “Up-Acting” Press Brake

Equipped with NC9EXII 3-Axis control and backgauge

Manufactured in 2001

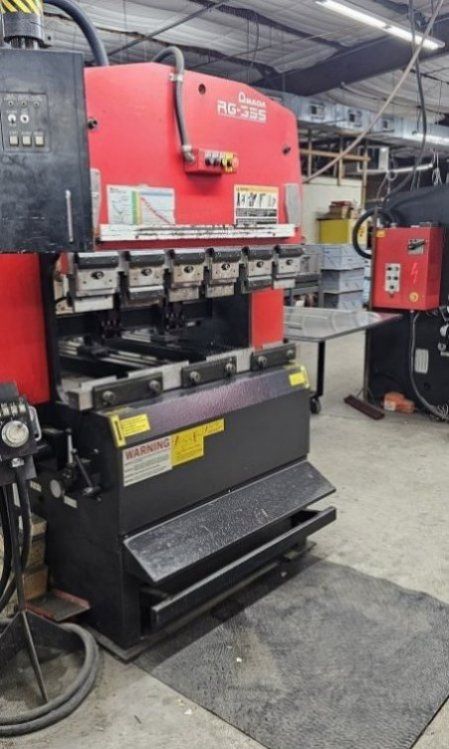

827-Amada-RG35S-Press-Brake-Front-Angle

Image 2 of 3

Request Quote

Amada “Up-Acting” Press Brake

The Amada RG -35S is a 35 ton x 4′ hydraulic “Up-Acting” press brake. All RG series press brakes are bending mechanisms built into a simple system. The primary concern of this original system is precision and user friendly operation. The Amada RG press brake series provides excellent performance in general sheet metal processing bending small and large parts. The numbers of Amada press brakes units installed worldwide proves its high reliability. This Amada RG-35S is equipped with the popular NC9EXII control and backgauge.

Specifications:

Capacity: 35 Tons (38.5 US)
Max. Bending length: 49.2”
Distance between uprights: 40.16”
Throat depth: 7.87”
Length of stroke: 3.937”
Open height: 14.57”
Hydraulic oil reservoir: 6.86 gallons

RAM Speed

Approach Speed: 1.57”/sec
Bending Speed: 37”/sec
Return Speed: 2.16”/sec

Machine Dimensions

Overall length: 53.35”
Overall width: 40.35”
Overall height: 77.17”
Net weight: 3528 lbs.

NC9EXII specifications

Number of drive axes: 3
Input method: Tenkey numeric pad
Data display: LED
Memory capacity: 99 steps
