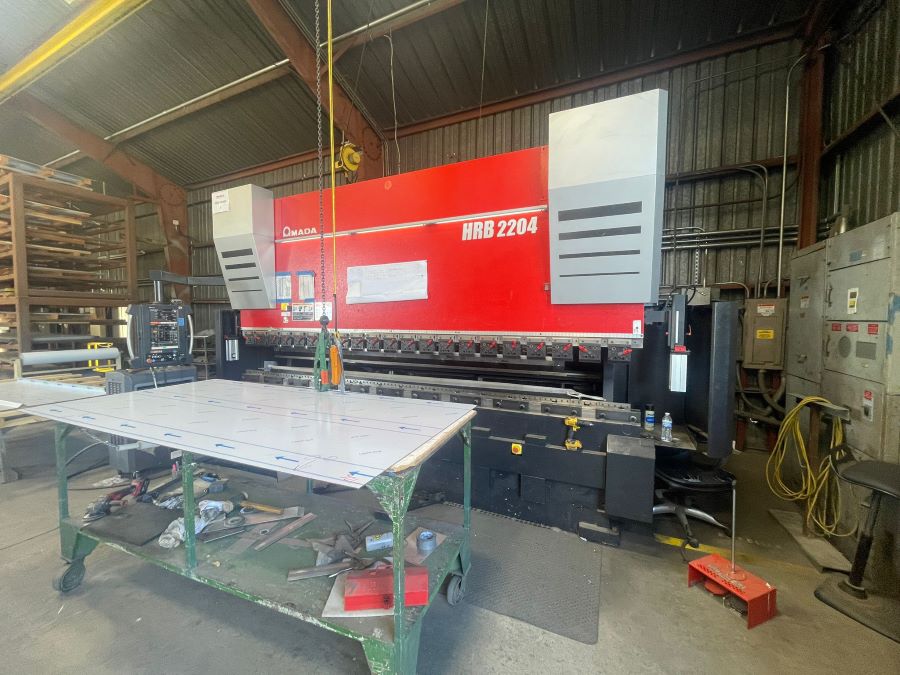

SOLD-243 Ton x 169.3″ Amada HRB 2204 Press Brake
Manufactured in October 2020
Machine Number 967
Request Quote
Amada HRB 2204
The HRB Press Brake Series leverages industry-leading bending technology and a variety of production-enhancing features that can be customized to resolve your specific challenges. In addition to providing precise bending results, the new HRB Series is engineered to ensure the utmost in versatility and ease-of- use.
System Specifications
Maximum tonnage: 243 U.S. Tons
Working length: 169.3”
Open height: 20.47”
Stroke length: 9.84”
Throat depth: 17.72”
Distance between frames: 148”
Hydraulic Oil Reservoir: 22.2 gal
Power consumption: 20 kVA
Approach speed: 4.72 inch/sec
Bending Speed: .47” inch/sec
Return speed: 4.72 inch/sec
Control: CNC (AMNC 3i)
Backgauge Axes: 6
RAM: D1&D2
Backgauge: L1&L2
Backgauge Horizontal: Y1&Y2
Backgauge Vertical: Z1&Z2
Ram Repeatability: .00004”
Backgauge Speed (L-Axis): 1,181 inch/min
Backgauge Speed (Y-Axis): 2,362 inch/min
Backgauge Speed (Z-Axis): 394 inch/min
System Dimensions
Total length: 197.4”
Total width: 82.7”
Total height: 120.7”
Ground Height: 101.5”
Total weight: 35,274 lbs.
