SOLD-200 Ton x 118″ Amada FBD-2003 Press Brake
Manufactured in 1986
Equipped with NC9-EX Contol and Backgauge
Request Quote

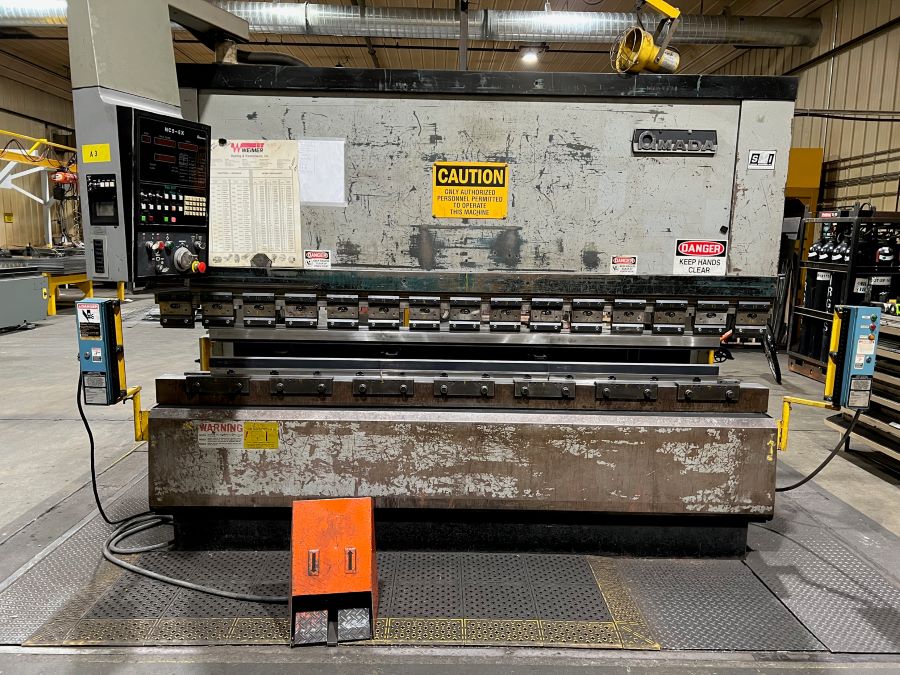

Amada FBD-2003 Press Brake
The Amada Fine Alpha Bender series is a precision up-acting style press brake noted for ease of use and reliability. This machine is equipped with the popular and user friendly NC9-EX CNC control and backgauge.
System Specifications:
Maximum Tonnage: 200 Tons
Maximum Bending Length: 122.0″
Maximum Stroke Length: 5.91″
Open Height: 14.57″
Throat Depth: 15.75″
Distance Between Side Frames: 103.9″
Number of Cylinders: Three (3)
Motor HP: 20 (400/460,230, 60HZ, 3 phase)
Tank capacity: 31.7 Gallons
Overall length:135.0”
Overall Width: 78.4”
Overall Height: 137.0”
Machine Weight: 26,896 Lbs.
Ram Speed:
Approach: 3.11″/Sec.
Bending: .31″/Sec.
Return: 3.11″/Sec.
NC9EXII specifications
Number of drive axes: 3
Input method: Tenkey numeric pad
Data display: LED
Memory capacity: 99 steps
