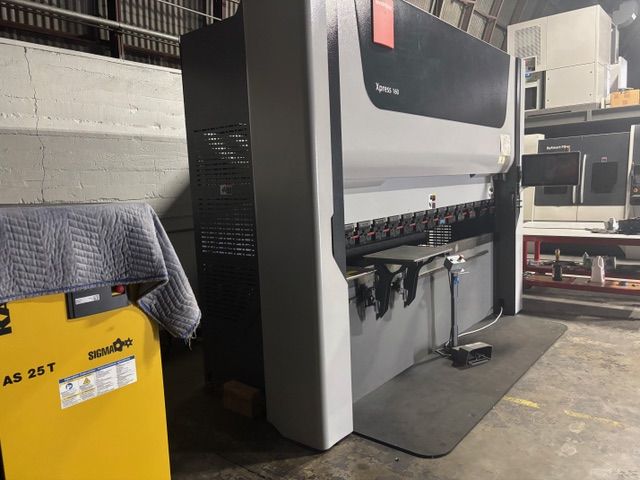

SOLD-176 Ton x 10′ Bystronic Xpress Press Brake
Model: 160/3100
Manufactured in 2021
Machine Number 1313
Request Quote
Bystronic Xpress Series
The Bystronic Xpress series offers maximum range and the highest precision with a compact design. The press brake’s closed O-frame design guarantees high machine rigidity. It thus creates free space for applications along the entire bending length.
Specification
Working Length: 3100 mm (122”)
Max. Press Force: 1600 kN (176 US Tons)
Standard Stroke: 250 mm (9.84”)
Open Height: 550 mm (21.7”)
Distance between Side Frames: 3150 mm (124”)
Rapid Approach: 150 mm/s (354 in/min)
Working Speed: 10 mm/s (23.6 in/min)
Return Speed: 150 mm/s (354 in/min)
Backgauge
X-axis Travel: 500 mm
X-axis Speed: 400 mm/s
X-axis Position Accuracy: 0.05 mm
R-axis Travel: 100 mm
R-axis Speed: 100 mm/s
R-axis Position Accuracy: 0.05 mm
Z-axis Travel: 2300 mm
Z-axis Speed: 600 mm/s
Max. Y-Approach Speed: 150 mm/s
Max Y-Working Speed: 10 mm/s
Y-Position Accuracy: .01 mm (0.0004”)
Electric values
Power of Main Motor: 11 kW
Total Connected Load: 15 kW
Operating Voltage: 3PH 480V
Frequency: 60Hz
Control voltage V DC: 24
Dimensions
Length: 3740 mm (147.2”)
Width: 1850 mm (72.8”)
Height: 2800 mm (110.2”)
Weight: 9000 kg (19842 lbs)
