Sold-146 Ton Amada HFE M2-1303 Press Brake

Equipped with 8 Axis Backgauge

Manufactured in 2013

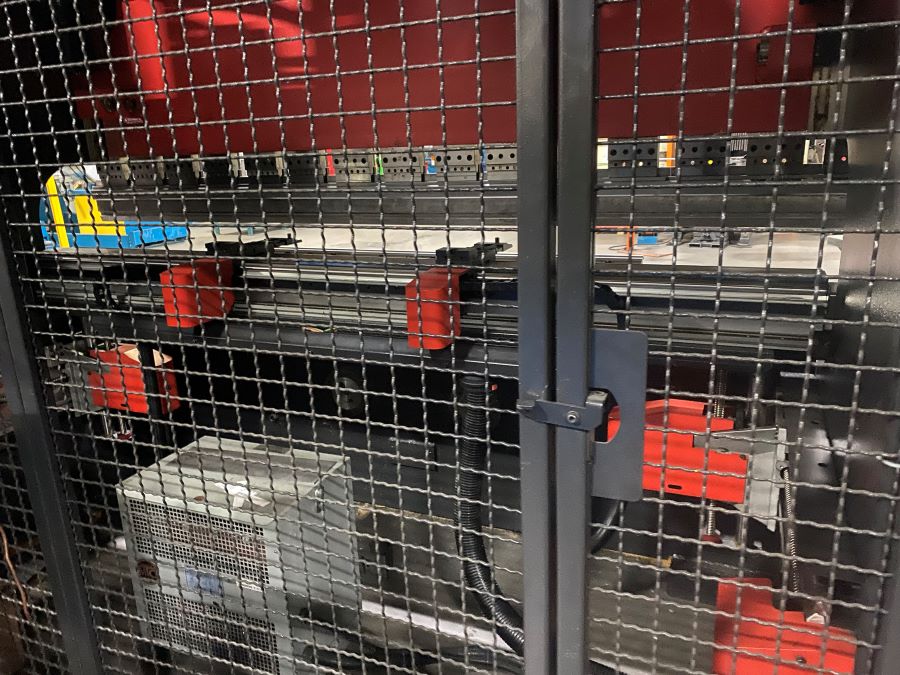

717-HFE-M2-1303-2013-back

Image 3 of 3

Request Quote

Amada HFE M2 series

Built on the solid foundation of the HFE series, Amada’s new HFE M2 press brake models include additional production-enhancing features and an innovative touch-screen AB PAD interface. Overall design improvements result in an eco-friendly series that provide maximum performance and ease of use. Equipped with an energy saving drive — the inverter on the HFE M2 series reflects Amada’s ongoing
commitment to environmental protection. The new drive system uses a frequency inverter that controls the motor pump and ensures efficiency by operating only when necessary. The system continually monitors and self-regulates bending requirements — this translates to using 20% less energy, a significant reduction
in maintenance requirements, less oil consumption, lower noise levels, and an increase in reliability

Machine Specifications:

 Maximum tonnage: 146
Minimum tonnage: 16.9
Working length: 123”
Table width: 3.54”
Working height: 37.8”
Open height: 18.5”
Stroke length: 7.87”
Throat depth: 16.5”
Distance between frames: 106.3”
Oil capacity: 39.6 gallons
Total length: 174.8”
Total width: 103.3”
Total height: 110.8”
Total weight: 17,970 lbs.Power consumption: 14 KVA
Max. Approach speed: 3.94 in/sec.Max. Bending speed: 0.39 in/sec.
Max. Return speed: 0.394 in/sec.

Control

Model: AB PAD NC
Features:
*Interactive touch screen
*Automatic program creation from a 2D representation of the workpieces
*Large program, tool and materials library
*Remote diagnostics capabilities
*Software updates via USB or internet
*Movable on three axes – adaptable to the requirements of the operator
