SOLD-143 Ton Amada HG 1303 RM Robotic Bending System
Manufactured October 2021
Request Quote
Amada HG 1303 Rm

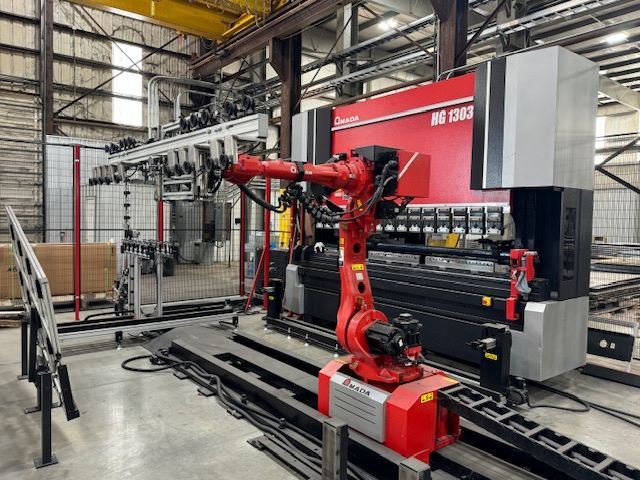

The HG 1303 Rm Robotic Bending System is designed specifically for processing large parts-which typically require two operators to safely handle or are difficult to manage by a single operator. This automated bending system provides consistent, high-quality parts and process reliability while eliminating time-intensive, manual handling of large parts. Highly-complex parts and small lot sizes can also be processed efficiently and accurately by the HG Rm. This model has a 143-ton capacity servo/hydraulic drive system and features the AMNC 3i Control with vertical 18.5″ multi-touch display. The 7-axis robot performs consistent unmanned bending operations and the 2×2 gripper station allows robot to automatically change hands between jobs.
Press Brake Specifications
Tonnage: 143 Tons
Distance between Frames: 106.3”
Stroke Length: 9.8”
Open Height: 20.5”
Max Approach Speed: 8.7” per second
Max Bending Speed: 0.79” per second
Max Return Speed: 9.8” per second
Oil Capacity: 19 gallons
Backgauge: 6 Axis Plus 2 Axis L-Shift
Control type: AMNC 3i
Bending Robot Specifications
Model: Yaskawa
Load Capacity: 176 lbs. (including gripper)
Axis Configuration:
Robot: 6-axis
Traveling Axis: 1-axis
Traveling Axis: 26.2”
Repeat Positioning Accuracy:
Robot: ±0.008”
Traveling Axis: ±0.016”
Automatic Gripper Station: Included 4 standard grippers (mechanical and suction-type)
Bi-S Operating Range
Accuracy: ±15 minutes
Materials: Mild Steel, Stainless Steel, Aluminum
Measuring Angle Range: 80° to 165°
V-Width Range: 0.236” to 1.57”
Tooling: AFH Sec IV Die, AMTS
Thickness Range: 0.040” to 0.236”
Min Flange: 0.79” (V=0.236”) to 1.69” (V=1.57”)
Part Processing Range
Thickness Range: 0.02” to 0.24”
Max. Part Size: 49.2” x 98.4”
Min. Part Size: 3.1” x 19.7”
