This machine has been sold-Please contact us for similar machines

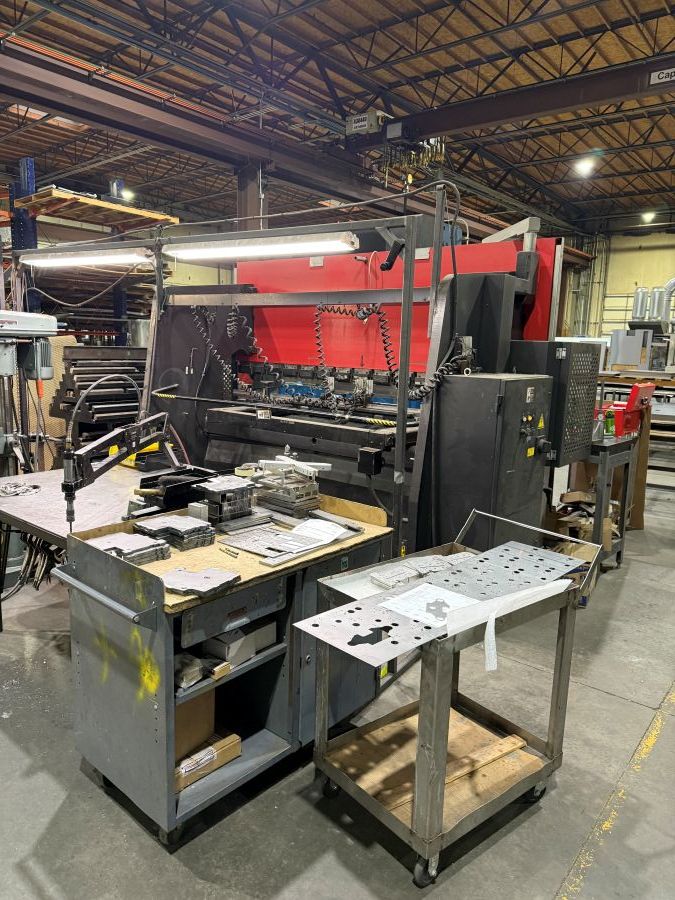

SOLD-110 Ton x 10′ Amada RGM2-1003 Press Brake
Manufactured in 2010
Machine Number 1235
Request Quote
Amada RGM2 series
All Amada RG series press brakes are bending mechanisms built into a simple system. The primary concern of this original system is precision and user friendly operation. The Amada RG press brake series provides excellent performance in general sheet metal processing bending small and large parts. This model has a 110 Ton press capacity and a 118.1″ bending length.
Machine Specifications
Model: RGM21003
Press Capacity: 110 US Tons
Table Length: 118.1”
Maximum Bend Length: 118.1”
Distance between Uprights: 100.4”
Throat Depth: 15.75”
Maximum Stroke: 3.94”
Open Height: 14.57”
Main Motor: 400/460,230 Volt
Power Required: 14.2 kVA
Hydraulic Oil Reservoir: 25.1 gal
Overall Length: 154.7”
Overall Width: 82.5”
Overall Height: 94.7”
Ground Height: 95.5”
Mass of Machine: 14770 lb
