Sold-Amada HG-1003 ARs Robotic Bending cell , 110-ton press brake, ATC Auto-Tool changer
Manufactured in 2018, Excellent Condition!
Request Quote
The Amada HG-1003ARs Robotic bending cell
By integrating a bending robot with the precision of AMADA’s HG Series press brake and patented Automatic Tool Changer (ATC), fabricators can automatically bend a variety of parts with maximum accuracy. The HG ARs supports workpieces up to 39.3″ x 31.4″ and has a weight capacity of 44 lbs.
AMADA’s ATC ensures that tools are loaded quickly and precisely. Four tool manipulators quickly load tooling from 15 punch stockers and 18 die stockers. Each stocker can hold 31.5″ in tooling which brings the ATC’s tool capacity to over 86 feet.
A 6-axis robot with a wide range of motion capabilities performs all part loading, bending, and unloading operations.During bending, a potentiometer backgauge system with additional side gauge also compensates for any deviation when the workpiece is placed on the die. These compensating machine characteristics ensure that parts are produced consistently and with maximum accuracy.
Additional HG 1003 ARs features and benefits include:
- Ideal solution for variable lot sizes and complex tool layouts
- Increase the number of tool setups performed each day
- Automatic Gripper Changer (AGC) is equipped with up to nine grippers that provide the robot with
maximum part handling versatility. - ATC stores 86′ (26.4m) of robot-loaded tooling

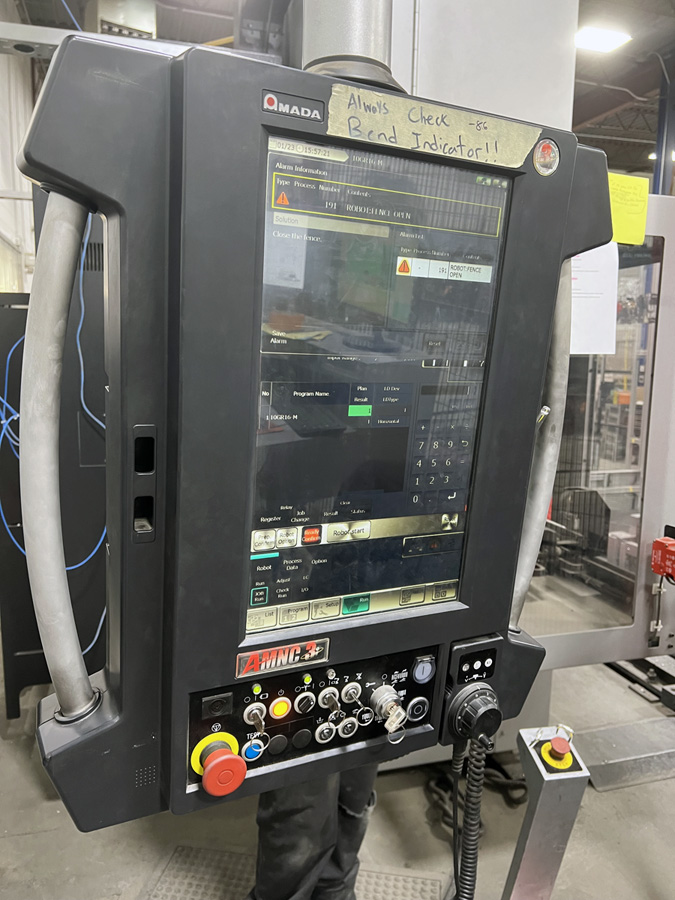

- New AMNC-3i control
- Potentiometer backgauge system with additional side gauge
Specifications: Press brake:
Tonnage (US): 110 Tons
Open height: 23.4”
Stroke: 9.8”
Distance between frames: 106.3”
Backgauge: 6 axis plus 2 axis L-shift
Oil capacity: 15.8 gal.
Maximum approach speed: 8.66 inches per second
Maximum bending speed: 0.78 inches per second
Maximum return speed: 9.84 inches per second
Control: AMNC 3i
Specifications:Automatic Tool Changer (ATC):
Tool style: AMTS IIIS ATC
Punch stockers: 15
Die stockers: 18.
ATC location: Right hand
Auto tool layout range: 118.1”
Minimum tool pitch: 0.196”
“V” Range: 0.157-1.57”
Punch reversal unit: Stocker 1-12 reversible only
Punch height: 8.7” standard, 9.4” special
Specifications: Robot
Bending robot: Yaskawa Motorman HP20D
Controller: DX100
Traveling axis: 252”
Part size:
Maximum: 39.4” x 31.5”
Minimum: 5.9” x 5.9”
Maximum part weight: 44 lbs. (including gripper)
Thickness: 0.020” – 0.236”
Gripper
Gripper station (can hold up to 9 grippers): (6) mechanical/suction coup (3) suction cup
Loading positions: 2
Unloading positions: 2
Complete System Specifications
Total length: 440.0”
Total width: 234.6”
Total height: 109.6” (151.9” when including the robots area of motion)
Total weight: 33,100
Specifications: Electrical:
HG: 18 kVA
ATC: 4 kVA
Robot: 6 kVA
Voltage: 200V
Bend control
Auto bend indicator slide
