Sold-33-Ton Strippit 1500H30 Turret Punch Press

Manufactured in 2000

Equipped with GE Fanuc 180iP control, 40 Station thin-style turret and 60 inch throat

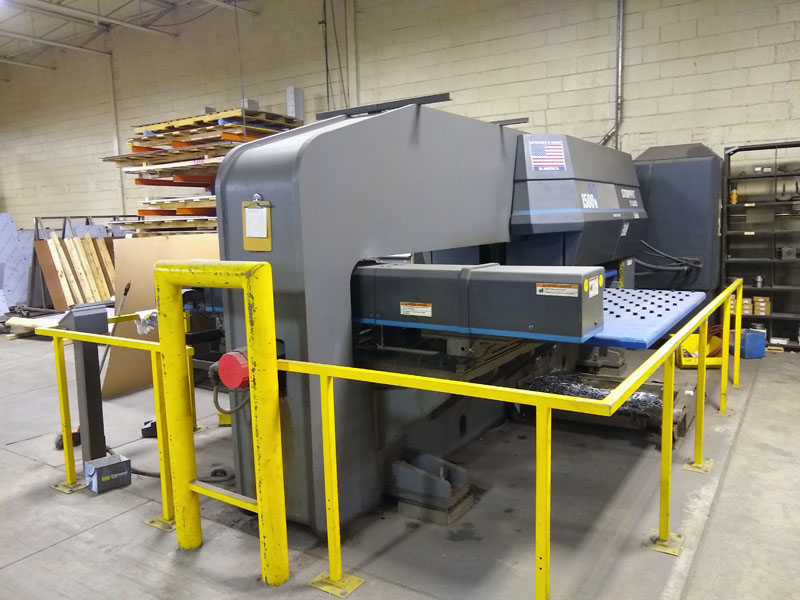

355-1500H30-back

Image 3 of 7

Request Quote

Turret Punch Press with “Smart Stroke” Technology

The Strippit 1500H30 is a 33-ton hydraulic turret punch press with a 60″ throat. This series of turret punch feature Strippit’s “smart stroke” technology for ram control and a GE Fanuc 180iP control. Also, it is equipped with a 40-station turret that will accept Strippit’s thin style tooling.

Machine Specifications:

Measurements
Weight: 33, 250 lbs.
Length overall: 188.5”
Height overall: 96”
Width, doors closed: 187”
Maximum travel X-axis: 100.43”
Maximum travel Y-axis: 63.75”
Tonnage: 33 imperial tons Punching speeds:
Hits per minute on 1” centers: 350
Hits per minute on 0.062” centers: 900

Maximum stock size
Normal: 60” x 99”
With Progressive Move: 60” x 144”
Maximum stock thickness: 0.312”
Feed clearance: 0.866”
Turret drive Bi-directional: 40 station for thin style (short) tooling
One station index time: 1.0 sec.
Number and size of Auto-Index stations: two (2) 3.5”

Hole punching capacity:
3.5” diameter in 10 gauge mild steel
1.625” diameter in 0.250 mild steelAccuracy: 0.004”

Hydraulic press drive H/30: 30 HP
