SOLD-33 Ton Amada Vipros III Z3510 NT Turret Punch Press
Equipped with 45 Station 4 Auto-Index Turret
Manufactured in September 2003
Machine Number 1241
Request Quote
Amada Vipros III Series
The Amada Vipros III is a hydraulic servo drive turret punch press and was Amada’s last most advanced Vipros. It is equipped with a 4-auto-index turret and 4′ x 8′ brush table.
Motion Package Specifications
Travel Method: X and Y axes work piece movement
Control Method: X, Y, T & C
Drive Motors: Fanuc AC Servo (X, Y, T, C)
Maximum Sheet Size: 98” x 50” (w/out repo)
Maximum Sheet Size: 196.85” x 50″ (with one repositioning cycle)
Maximum sheet thickness: 0.135″
Maximum material weight: 154 lbs.
Max. linear table speed (X/Y/combined): 3934 ipm/3149 ipm/5039 ipm
Punching accuracy: +/- 0.0027″
Positioning accuracy: +/- 0.001″
Repeatability: +/- 0.001″
Punching System Specifications
Press Capacity: 33 Tons
Press Stroke: 1.772″
Stroke Rate:
Pitch Stroke Stroke rate
0.079″ 0.236″ 600/510
1.000″ 0.236″ 410/320
Maximum Hole Diameter: 4.5″
Tool Type: Amada Thick
Turret Rotation Speed: 33 RPM
Feed Clearance: 0.984″
Auto index rotation speed: 60 RPM
Turret: 45 stations 4 Auto-Index
Turret Configuration
45 Station (4) – Auto-Index “Z” Turret
24 (1/2″)
12 (1-1/4″)
2 (2″)
1 (3-1/2″)
2 (4-1/2″)
2 (1-1/4″ Auto-Index)
2 (2″ Auto-Index)
AMNC-F Controller
Model: AMNC-F
Control function: X, Y, T & C
Input method: MDI, DNC
Minimum command unit: 0.001″ (X, Y) 0.01″ (C)
Minimum travel unit: 0.001″ (X, Y) 0.01″ (C)
Operating modes: Automatic, MDI & Manual
Display modes: Program contents, position information, program check, parameters, tool hit counter, self-diagnostics
Interlock displays: Oil temperature, oil pressure, door open
Equipped with
Fanuc Series 180i-PB CNC controller
45 station 4 Auto-Index Turret “Z” Style Turret
Brush Table Design
Tool type-Amada Thick

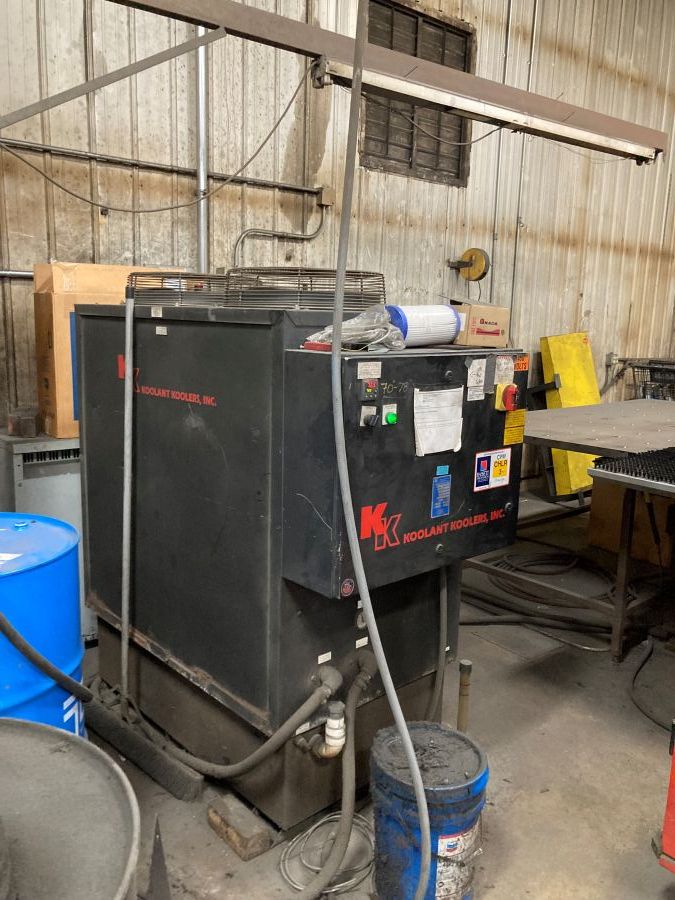

Chiller
