This machine has been sold-Please contact us for similar machines
SOLD-33-Ton Amada Pega 357 Turret Punch Press
45 Station 4-Auto Index Turret
Manufactured in 1994
Machine Number 1208
Request Quote

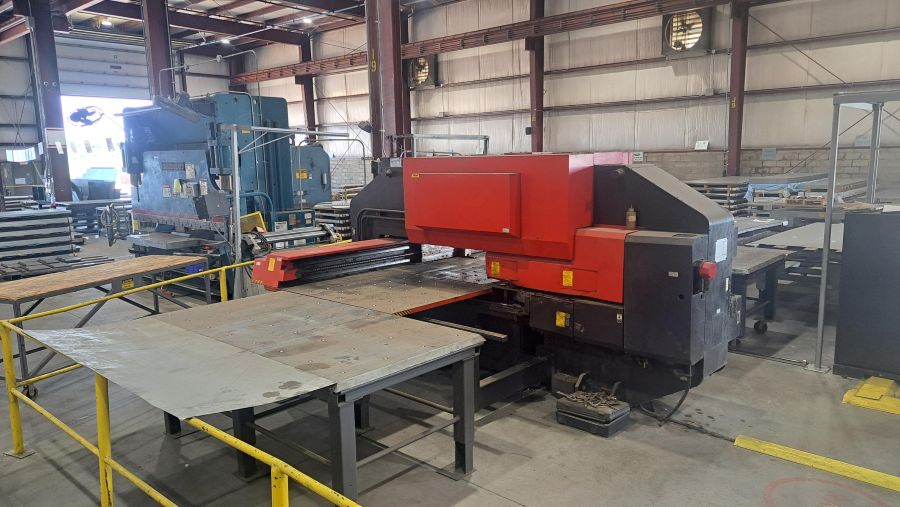

Pega 357 Turret Punch Press
The Amada Pega 357 is a mechanical 33 ton turret punch press capable of processing sheets up to 4′ x 12′ with one auto repositioning cycle. All of the Pega series machines are known for reliability and low maintenance costs. This Pega 357 features a hydraulic clutch and brake system, Fanuc based 04PC control and 50″ throat. This Pega 357 has a 45 Station 4 Auto-Index Turret.
Machine Specifications
Frame Design: Bridge
Press Capacity: 33 Ton
Type of Punching Force: Mechanical
Type of Clutch and Brake: Hydraulic
X axis Travel (Inches): 72″
Y axis Travel (Inches): 50″
Throat Depth (Inches): 50″
Maximum Sheet Size with One Auto-Reposition: 50″ x 144″
Control: Fanuc 04PC
Tape Format: E.I.A. or A.S.C.I.I.
Programming Mode: Absolute/Incremental
Smallest Programmable Increment: .001″
Axis & Turret Drive: AC motors brushless/servo
Strokes per Minute: 350
Axis Speed: 2,000 IPM
Hits per Minute 1″ moves: 200
Nibbling Hits Per: 350 IPM
Main Motor: 5 HP 3/60 Volts
Machine Weight: 11.6 Tons
Approximate Dimensions: 181″ L x 148″ W X 88″ H
Turret Specifications
Number of Turret Stations: 45 Stations with 4 Auto-indexT
urret Rotation: 30 RPM
Maximum Hole Diameter: 4 1/2″
Maximum Material Thickness (Gauge): 1/4″ Mild Steel
Tool Type: Thick
Turret Specification Stations
24: ½”
12: 1 ¼”
2: 2″
1: 3 ½”
2: 4 ½”
2: 1 ¼” with Auto Index
2: 2″ with Auto Index
