This machine has been sold-Please contact us for similar machines
SOLD-33 Ton Amada EML 2515 AJ Fiber Laser-Punch Combo with 3000-Watt Resonator
Equipped with ASR 3015 NTK Automated Tower
and
EZPD4000 Nitrogen Generator (optional)
Manufactured in 2021
Machine Number 1190
Request Quote
Amada EML 2515 AJ Fiber Laser-Punch
The EML 2515 AJ is AMADA’s most popular punch and fiber laser combination machine. Pairing the multi-purpose turret with the unlimited shape cutting flexibility of a 3kW fiber laser gives fabricators the flexibility to innovate and work with their customers to create better part designs. The EML AJ also features many advanced automation options to meet virtually any production need. This particular machine is equipped with Amada’s ASR 3015 NTK Automated Tower and Amada’s EZPD4000 Nitrogen Generator.
Machine Specifications
Traverse Range 2515-AJ
Punching Force: 33 Tons
Punching Operation (X/Y): 120” x 60”
Laser Operation (X/Y): 100” x 60”
Combined Work Area with Repositioning: 120” x 60”
Z-axis Laser: 14.9”
Maximum Material Thickness: 0.250”
Table Loading Weight: 480 lbs.
Traverse Speed (X/YP): 3,937/3,149 inches per minute
Laser Axis (YL): 3,149 inches per minute
Axis Simultaneously: 5,039 inches per minute
Z-axis Simultaneously: 2,362 inches per minute
Processing Accuracy (Amada’s punching pattern): +/- 0.0027”
Assist Gas Change: Automatic
Included Rotation Stations: 55 Station 4 Auto Index
Punching System
Stroke (adjustable to suit application): 1.5”
Punch Rate (on 1” centers): 500 hits per minute
In Marking Mode: 1850 hits per minute
Table Design: Brush table
Parts Chute: 15.75” x 60”
Machine Frame: Bridge frame
Press Drive: Servo-electric drive
Turret/Table Drive: AC-Servo motors
Machine Weight: 33-tons
Engine
Continuous Laser Output: 3 KW
Model: AJ 3000
Control
Control: AMNC 3i
Multimedia CNC control
Storage capacity: 440 kB
Number of controlled axes: 6
Equipped With
ASR 3015 NTK Load/unload and parts sort system with 6-shelf tower

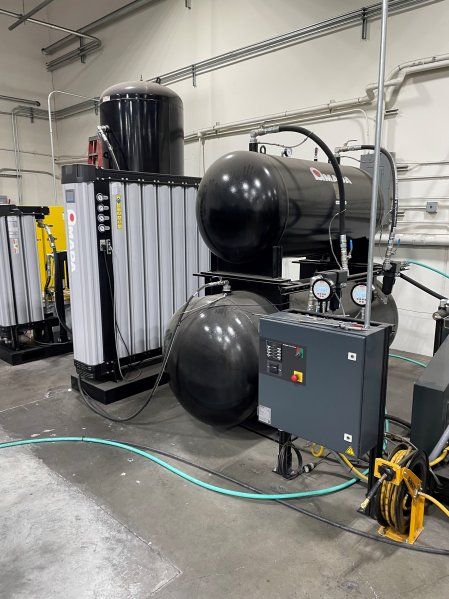

EZPD4000 Nitrogen Generator (at buyer’s option)
Amada AMNC 3i control
Chiller
Dust Collector
