SOLD-22 Ton Amada Pega 255 Turret Punch
with brush table, 31 Station 3 Auto-Index Turret, and Fanuc 18P control
Manufactured in 2002
Machine Number 1257
Request Quote

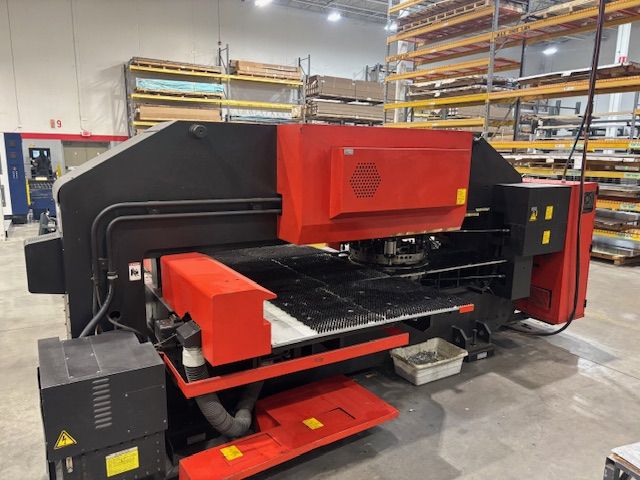

Amada Pega 255
The Amada Pega 255 is a mechanical 22 ton turret punch press. All of the Pega series machines are known for reliability and low maintenance costs. This model Pega 255 is capable of processing sheets up to 50″ x 100″ with one repositioning cycle. This Pega 255 has a 31 station 3 Auto-Index Turret.
Motion Package Specifications
Travel method: X and Y axes work movement
Control method: X,Y,T & C
Drive motors: Fanuc AC servo (X,Y,T ,C)
Maximum sheet size: 50.0” (Y) x 100” (X) with one repositioning cycle
Maximum sheet thickness
With ball transfer table: .250”
With brush transfer table: 10 gauge
Maximum material weight
With ball transfer table: 231 lbs (F-4), 110 lbs (F-1)
With brush transfer table: 110 lbs (F-1)
Maximum axis travel: 50.0 (x) x 50.0” (Y)
Maximum linear table speed: 2559 IPM (x) x 1968 IPM (Y)
Punching accuracy: 0.004”
Positioning accuracy: 0.0014”
Repeatability: 0.001”
Punching System Specifications
Press capacity: 22 tons (US)
Press stroke: 1.26”
Stroke rate X/Y
1” Centers: 230/210 HPM
Nibbling (0.315” pitch max.) 350/350 HPM
Maximum hole diameter: 3.5”
Tool type: Amada thick turret
Turret rotation speed: 35 RPM
Turret capacity: 31 stations (3 auto-index)
Feed clearance: 0.787”
CNC Control Specifications
Model: Fanuc 18P
Control function: X,Y,T & C
Input method: MDI, Floppy disk drive, DNC
Minimum command unit: 0.001” (X,Y) .01 degree
Minimum travel unit: 0.001” (X,Y) .01 degree
Operating modes: Automatic, MDI & manual
Display modes: Program contents, position information, program check, parameters, tool hit counter, self-diagnostics
Interlock displays: oil temperature, door open
