SOLD- 22 Ton Amada LC-2012C1-2500 Watt Laser-Turret Punch
Manufactured in 2009
Approximately 43,000 hours
Request Quote

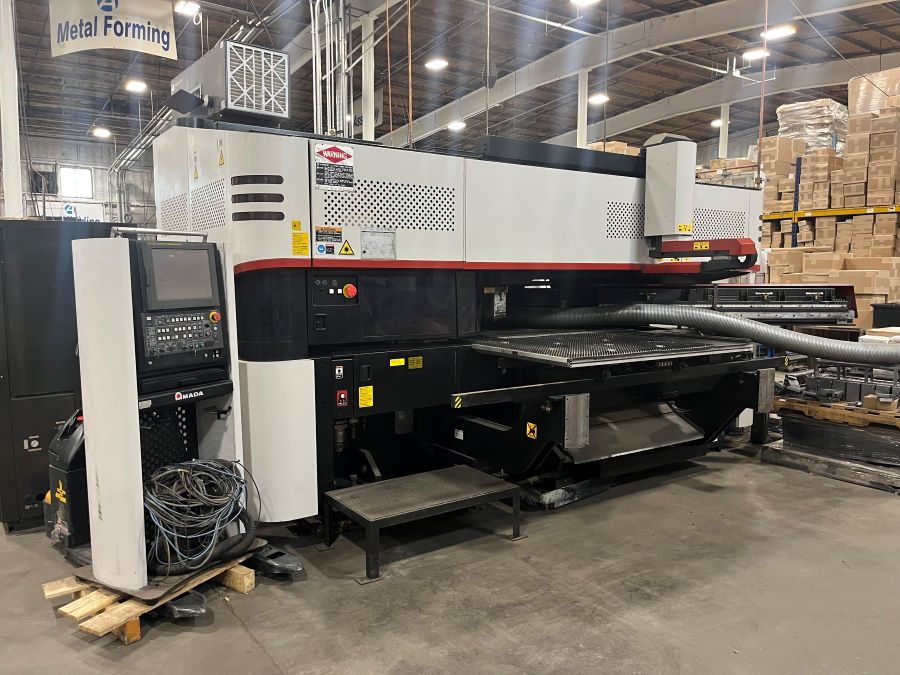

22 Ton Amada LC-2012C1, 2500 Watt Laser-Turret
The laser portion of the C1 features the AMADA/Fanuc AF2000i-B LU2.5 resonator with 2.5 kilowatts of cutting power. The laser head moves in the Y-axis via a direct drive servo mechanism for maximum speed and accuracy, and is isolated from punching vibration to help maintain beam integrity and cut quality. A cartridge-type lens assures simple and fast lens changes when required. The resonator is located on a frame designed to reduce floor space requirements and to provide isolation from punching vibration.
The punching portion of the C1 is based upon the highly successful AC-series of 22-ton servo drive turret punch presses. The servo drive not only offers punching speeds of up to 370 hpm on 1″ centers, but is also more efficient than hydraulic punch drives, requiring no pump or chiller.
Machine Specifications:
Max. sheet size w/o reposition: 79″ x 50″
Amada/Fanuc laser resonator model: AF2000i-B LU2.5
Max. sheet weight: 110 lbs. (F1) 330 lbs. (F4)
Max. material thickness: 0.25″
Max. continuous laser output: 2.5kW
Tap applications: Mild steel, stainless steel and aluminum
Punch servo drive: AC servo
Press tonnage: 22 tons
Turret capacity: 45 station (1) AI + (4) tapping stations (MPT turret)
Max. hit rate: X Axis 370 hpm – Y Axis 275 hpm
(on 1″ pitch at 0.118″ stroke) for punching pattern
900 hpm (at 0.019″ pitch and 0.055″ stroke) for marking pattern
Work chute size (X/Y): 15.75″ x 50″
Max. table feed rate (X/Y): 3,150 ipm x 2,362 ipm
Positioning accuracy during combination process: 0.0027″
Approx. floor space requirement: 226 sq. ft.
Power requirements: 69Kva
Machine weight: 15.5 tons
Equipped with:
Amada AMNC-NT control
Amada/Fanuc laser resonator model: AF2000i-B LU2.5
