SOLD-20 Ton LVD Strippit S-1212 CNC Turret Punch Press
~ Only 584 Punching Hours
Manufactured in 2007
Machine Number 1250
Request Quote
LVD Strippit S-1212 Turret Punch
The LVD Strippit S-1212 CNC turret punch has a 20 ton capacity, 49.21″ x 49.21″ workpiece size and is equipped with a 31 station 3 Auto-Index turret, GE Fanuc 180i-P control and a brush table.
Technical Specifications
Tonnage Capacity: 20 Tons
Normal Workpiece Size: 49.21” x 49.21”
Max Thickness (mild steel): 0.250”
Turret: 31 Stations
Turret Type: Thick
Punching Accuracy: ±0.004”
Table Type Capacities: Brush Table – up to 242 lbs.
Floating Clamps: 2 manual lock
Maximum Clamp Spread: 39.37”
Feed Clearance: 0.984”
Angular Positioning Accuracy: ±0.05°
Axis Traverse Speed: up to 4094 IPM combined
Maximum Hit Rate at 2mm working stroke4: 0.04” Feedrate up to 900 HPM
Maximum Hit Rate at 2mm working stroke4: 1” Feedrate up to 360 HPM
Turret Specifications
Turret Configuration: 31 Stations
Turret Layout A: 16’A’-0.5”
Turret Layout B: 10’B’-1.25”
Turret Layout C: 2’C’-2”
Turret Layout D: 3’D’-3.5”
Auto-Index Stations: 3’D’-3.5”
Equipped With

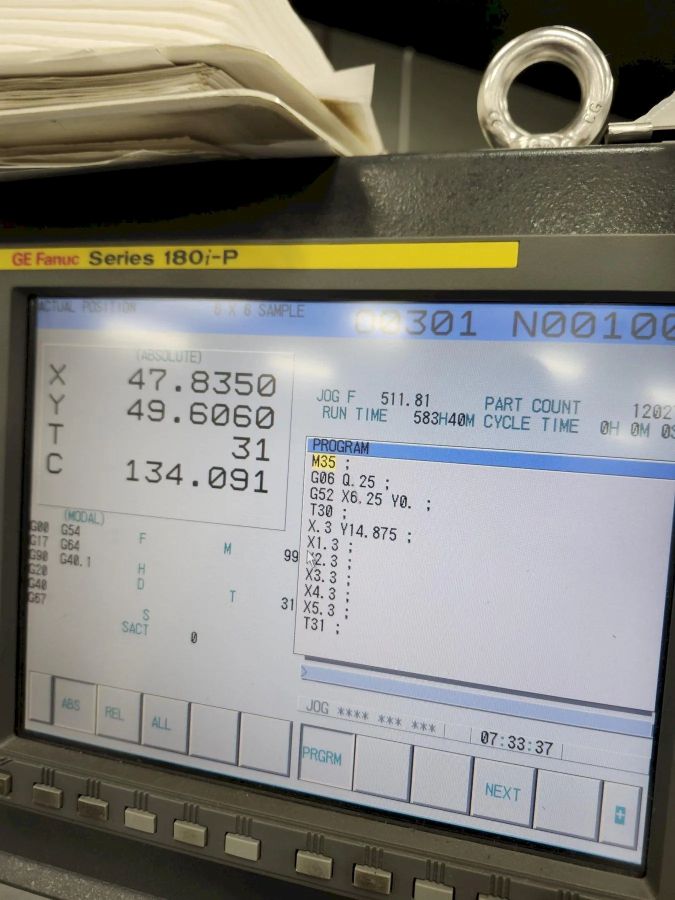

GE Fanuc 180i-P Control
Brush Table
31 Station 3 Auto-Index Turret
Dimensions
Dimensions: 187” x 105” x 82”
Weight: 20200 pounds
