SOLD- 9000-Watt Amada LCG-4020AJ Fiber Laser

Manufactured in 2018

Power On Hours ~ 30755 and Beam Hours ~ 11030 as of 3/27/2023

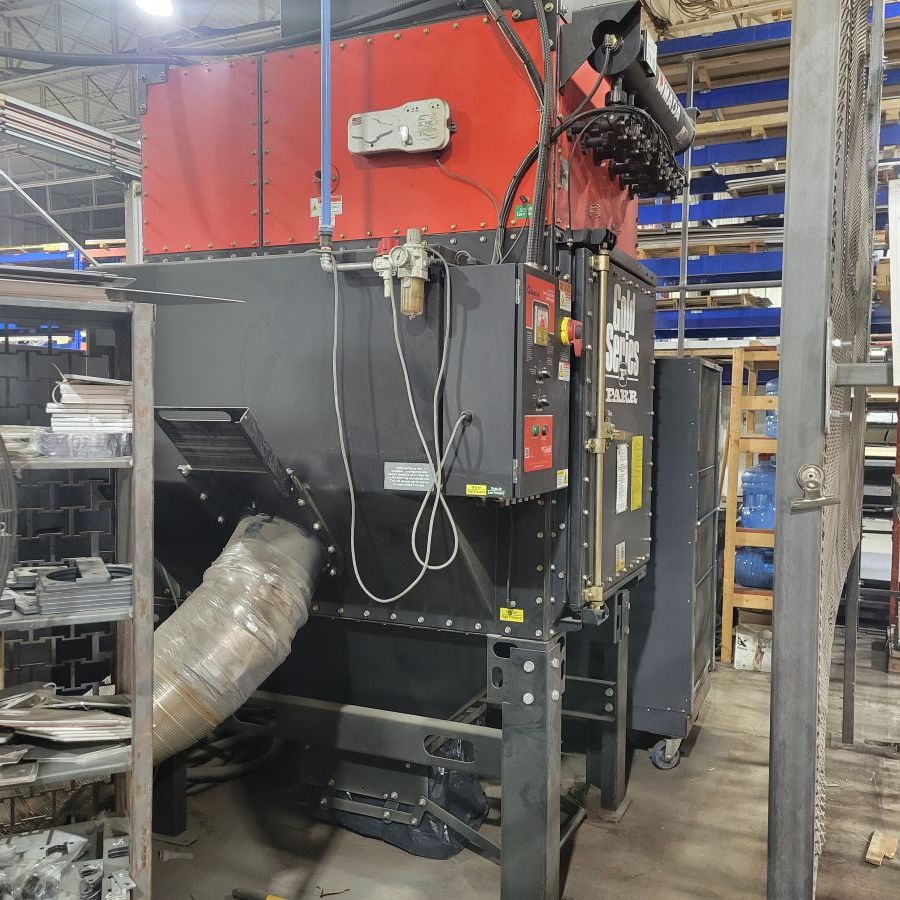

697-Amada-LCG-4020AJ-dust-collector

Image 5 of 5

Request Quote

Amada LCG-4020AJ Fiber Laser

The LCG AJ series is a high speed helical rack and pinion motion system with Amada’s Gen-3 Fiber engine. This Amada LCG is equipped with a 9KW for cutting thick material at high speeds and  a 4′ x 2′ meter shuttle table for processing large sheets.

Motion Package Specifications:

Maximum Sheet Size (X,Y): 160″ x 80″
Maximum Axis Travel (X,Y,Z): 160.23″ x 80.70″x 3.93″
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Axis Positioning Speed (X,Y): 4,724 Inches per minute
Per axis: 6,693 inches per minute 45o vector.
Maximum Speed Z-Axis: 4,724 inches per minute
Repeatability: +/- 0.0002″
Maximum Material Weight: 3500 lbs.
Assist Gas: 4 ports with NC pressure Control
Electrical Requirement: 200V, 3 Phase, 60Hz

Machine Control

Model: AMNC 3i Control
Display: Touchscreen Color LCD
Control function: X,Y,Z Axis simultaneous and focus lens B-axis, and laser power control (CW, gated, pulse, pierce, routines, etc.)
Data storage: Compact flash drive

Fiber laser Resonator (Engine)

Resonator style: LD excited Yb fiber
CW Output power: 9 KW
Peak Pulse output power: 9 KW
Power stability: +/- 2%
Laser wavelength: 1.08 microns
Laser power mode selection: CW, gated Pulse (CNC controlled)
Laser beam mode output: multi-mode
Beam divergence: < 3mm-mrad
Pulse frequency: 1-10000 Hz
Pulse duty: 0-100%
Interlocks: Electrical, mechanical, chiller
Electrical requirements: 200V, 3-phase, 60Hz, 12kVA max.
