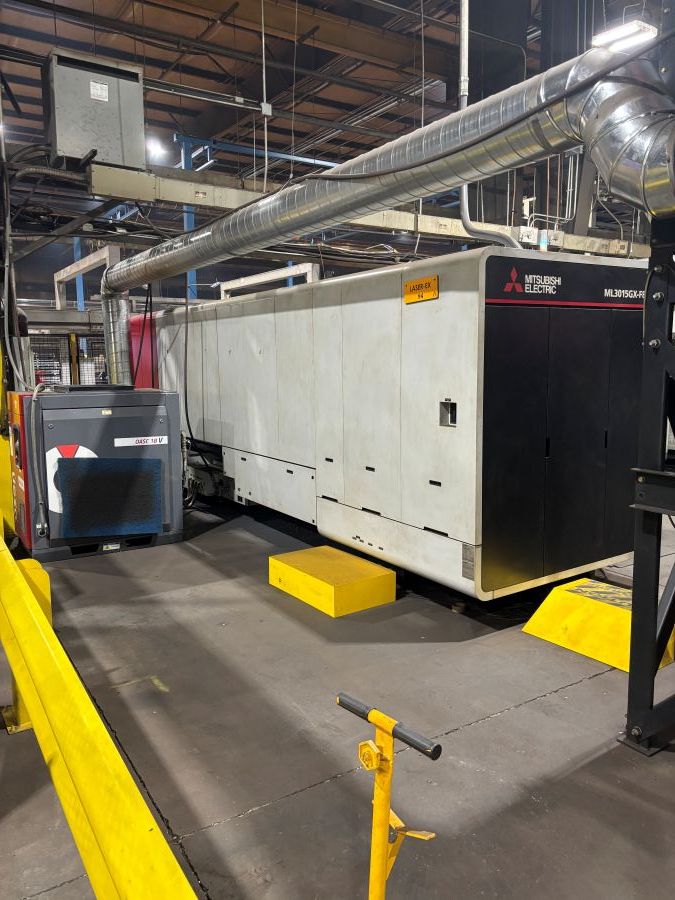

SOLD-8000-Watt Mitsubishi ML-3015 GX-F80(D) Fiber Laser
Manufactured in October 2020
Machine Number 1283
Request Quote
Mitsubishi GX-F Series
The laser cutting systems of the GX-F series are based on the highly efficient fiber laser technology and thus enable highest cutting speeds due to the wavelength of 1.07 µm. They guarantee maximum performance when processing sheets up to 25 mm thick with dimensions of 3,050 x 1,525 mm. The GX-F machines are equipped as standard with an automatic pallet changer for maximum productivity. This model is equipped with an 8000-watt fiber resonator (source) for a proven design.
Specifications
Model: 3015GX-F80(D)
X-axis Stroke: 122”
Y-axis Stroke: 61.61”
Z-axis Stroke: 4.72”
Maximum Work Piece Size: 120.1” x 60.0”
Maximum Processing Feed Rate: 3937 in/min
Maximum Work Piece Weight: 2094 lbs.
Table Pass Height: 35”
Rapid Travel Speed: 6700 in/min simultaneous
Repeatability: ±0.00039”
Machine Unit Dimensions: 415” x 135”
Machine Weight: 20,725 lbs.
Equipped With
8000-Watt Mitsubishi Electric resonator/engine
D-CUBES 19” Mitsubishi Electric Touchscreen Control
Chiller
Dust Collector
