Sold-6000-Watt Amada ENSIS-3015AJ Fiber Laser
With AMS 3015 CL Automated Load/Unload system
Manufactured in 2022
Request Quote
ENSIS Fiber Laser Cutting System
The Amada ENSIS-3015AJ is a fiber laser cutting system featuring Amada’s proprietary ENSIS technology, which offers the ability to cut both thick and thin material with excellent cut quality. This technology also allows the user to easily switch between material thicknesses and types. By combining the ENSIS technology with Amada’s proven laser cutting knowledge, this is Amada’s most versatile fiber laser cutting system.
Specifications:
Specifications
Motion Package:
Travel method: Stationary table X, Y, and Z axis movement for cutting head
Control method: X, Y, and Z simultaneous 3-Axis control
Drive motors: Fanuc AC Servo motors
Maximum sheet size (X,Y): 120” x 60”
Maximum axis travel (X,Y,Z): 121” x 61” x 3.93”
Maximum positioning speed (X,Y)
Per axis: 4,724 inches per minute
45 degree vector: 6,693 inches per minute
Maximum speed Z-axis: 4,724 inches per minute
Repeatability: +/- 0.0002”
Maximum material weight: 2,000 lbs.
Maximum material thickness
Mild steel: 1.0”
Stainless steel: 1.0”
Aluminum: 0.750”
Assist gas: 4 ports with NC Pressure control
Electrical requirements: 200V, 3 Phase, 60 Hz

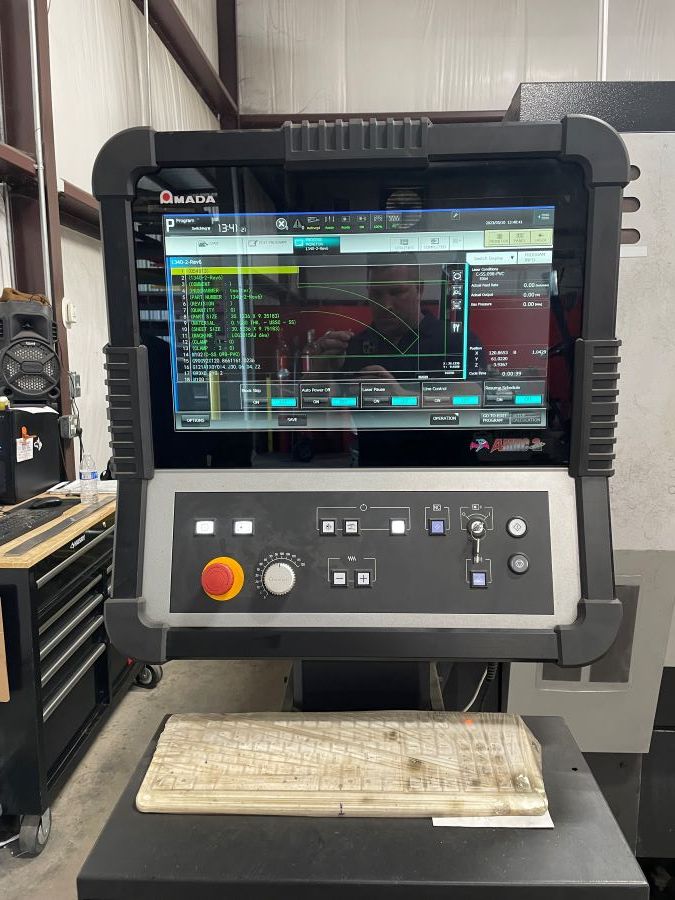

Control:
Model: AMNC 3i Control
Control function: X,Y,Z axis simultaneous and focus lens, B-axis and laser power control (CW, gated plus, pierce routines etc.)
Data storage: Compact flash drive
Fiber Laser resonator (Engine):
Model: AJ6000 with ENSIS Technology
Resonator style: LD Excited Yb fiber
CW output power: 6 KW
Laser Wavelength: 1.08 microns
