This machine has been sold – Please contact us for similar machines

SOLD-5000-Watt Trumpf TruLaser 5040 Fiber Laser

Manufactured in 2014

Machine Number 1248

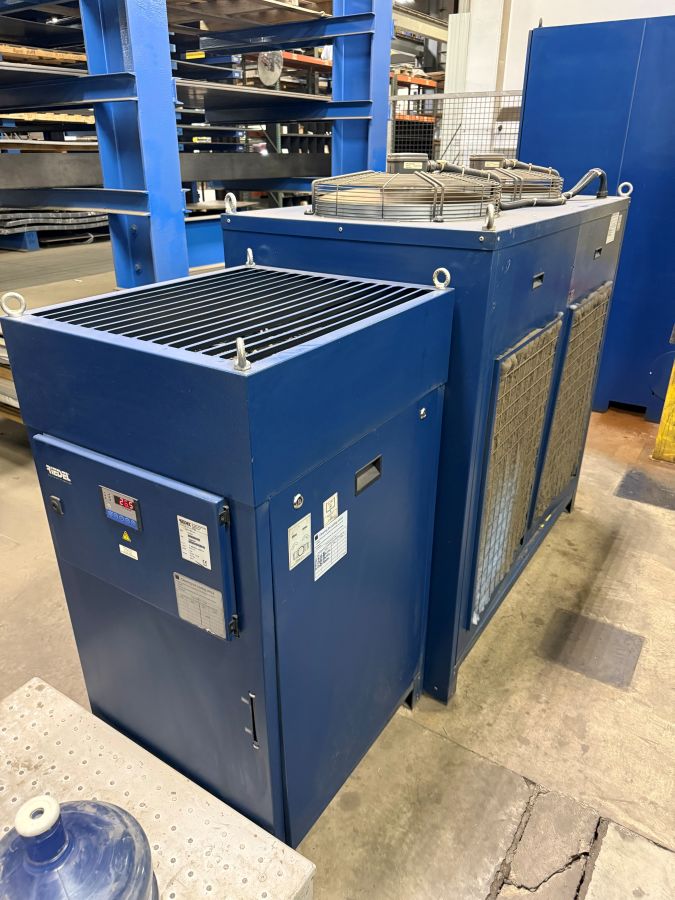

1248-Trumpf-TruLaser-5040-Fiber-5kW-Chiller

Image 4 of 8

TruLaser 5040

The Trumpf TruLaser 5040 is a 5000 watt “linear drive” 6′ x 12′ laser cutting system. The 5000 series are productive machines and these powerhouses set high standards of productivity and cost efficiency. A Siemens based control and shuttle table completes this highly productive Trumpf laser cutting system.

Specifications

Working Range:
   X axis: 157″
   Y axis: 78″
   Z axis: 4.5″
Maximum Axial Speeds:
   Simultaneous, approximate: 10,443 IPM
Accuracy:
   Smallest Programmable Increment: .0004″
   Positioning Accuracy: .004″
   Repeatability: .001″

Control

Trumpf CNC Control: Siemens

TruDisk 5001 Resonator

Maximum Power: 5000 Watts
Maximum Material Thickness
   Mild steel: 25 mm (~ 1″)
   Stainless steel: 20 mm (~0.787″)
   Aluminum: 20 mm (~0.787″)
   Brass: 10 mm (~0.39″)
   Copper: 10 mm (~.39″)
