This machine has been sold-Please contact us for similar machines
SOLD-4000-Watt Trumpf TruLaser Tube 7000 Fiber Laser Cutting System
Manufactured in 2019
Machine Number 1168
Request Quote
Trumpf TruLaser Tube 7000
The Trumpf Trulaser Tube 7000 fiber is a solid-state laser that has a broad processing spectrum. The open machine concept gives the TruLaser Tube 7000 fiber optimal accessibility during loading and unloading. This means the machine is efficient from a lot size of 1. The bevel cutting option enables high-quality bevel cuts of up to 45°.
Machine Specifications
Round Tube
Max. Outer Diameter: 254 mm (10”)
Rectangular Profile
Max. Side Length and Outer Circle Dimeter: 220 mm/ 254 mm (8.66”/10”)
Max. Raw Length for Automatic Loading
For Loadmaster Tube 6.5 M: 6500 mm (255.9”)
For Loadmaster Tube 9.2 M: 9200 mm (362.2”)
For Loadmaster Tube 12.5 M: 12500 mm (492.1”)
Finished Part Length
For Unloading Unit 4.5 M: 4500 mm (177.2”)
For Unloading Unit 4.5 M + 1.5 M: 6000 mm (236.2”)
For Unloading Unit 6.5 M: 6500 mm (255.9”)
For Unloading Unit 6.5 M + 1.5 M: 8000 mm (315”)
Workpiece Weight
Max. Path Weight (standard/optional) 40 kg/m
Max. Raw Material Weight with Automatic Loading
With Loadmaster Tube 6.5 M: 260 kg (573 lbs)
With Loadmaster Tube 9.2 M: 368 kg (811 lbs)
With Loadmaster Tube 12.5 M: 368 kg (811 lbs)
Laser-Specific Data – TruDisk 4001
Maximum Laser Power: 4000 Watts
Max. Sheet Thickness, Mild Steel: 10 mm (.39”)
Max. Sheet Thickness, Stainless Steel: 6 mm (.24”)
Max. Sheet Thickness, Aluminum: 6 mm (.24”)
Max. Sheet Thickness, Brass: 5 mm (.20”)
Equipped With
30’ Load and 20’ Offload Station
Tapping and Drilling
Bevel Cutting Head
Seam Camera
4kW TruDisk Resonator

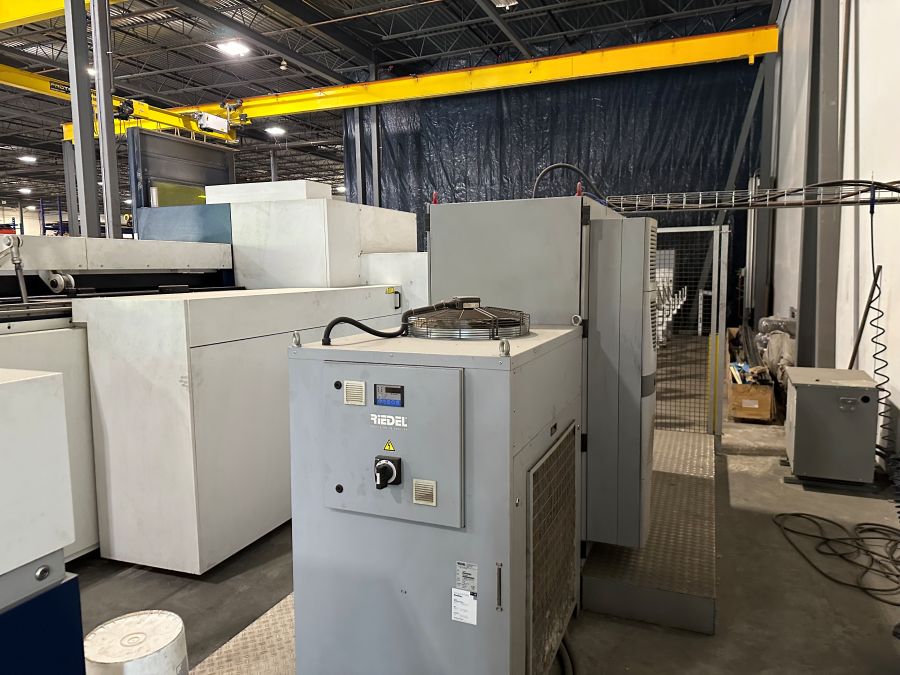

Chiller
Dust Collector
