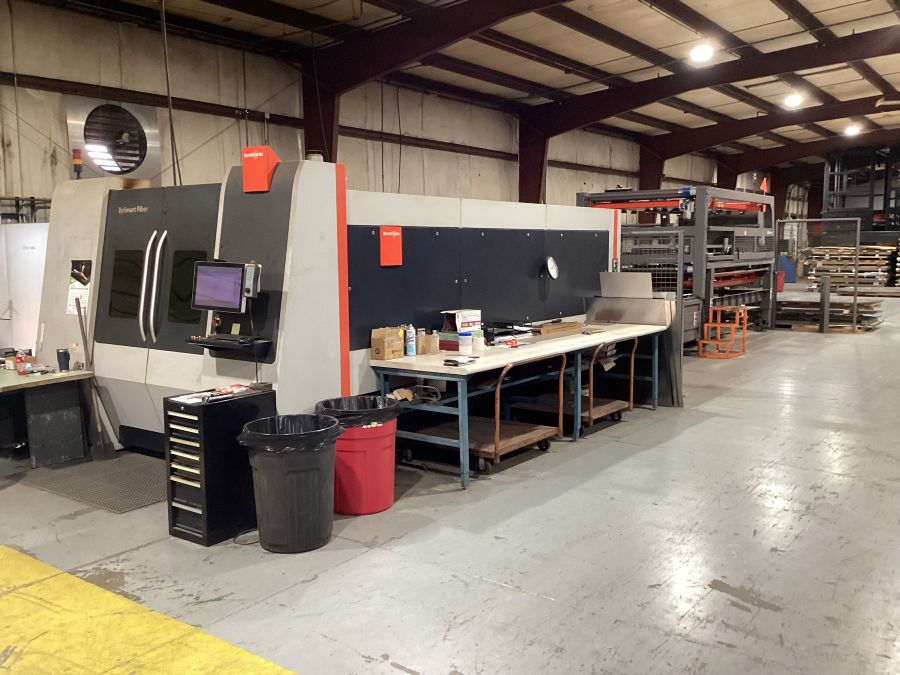

SOLD-4000-Watt Bystronic BySmart Fiber 3015 Laser
With ByTrans 3015 Load/Unload Standard
Manufactured in 2017
Machine Number 1159
Request Quote
Bystronic BySmart 3015 Fiber
The BySmart Fiber offers excellent cutting performance with 4000-Watts of laser power. The trend-setting technology and the intuitive user interface of the laser cutter make it easy for you to get started. In addition, you benefit from high part output when cutting metal. The ByTrans load/unload provides automation for extra productivity within a compact footprint.
Specifications
Construction length, ca. (L): 430”
Construction width, ca. (W): 245”
Construction height, ca. (H): 125”
Nominal sheet size (X): 120”
Nominal sheet size (Y): 60”
Cutting area (X): 124”
Cutting area (Y): 63”
Cutting area (Z): 2.5”
Maximum positioning speed parallel axis X/Y: 3937 in/min
Maximum positioning speed simultaneous: 5511 in/min
Repeatability (positioning speed) Ps (VDI/DGQ 3441): ±0.002”
Positioning accuracy Ps (VDI/DGQ 3441): ±0.004”
Edge detection accuracy: ± 0.02”
Maximum workpiece weight: 1650 lbs
Machine weight (without exhaust, chiller) 28,700 lbs
Resonator Specifications
Laser source: Fiber 4000
Power: 4000 W
Range of adjustment: 400-4000 W
Wavelength: Fiber
Steel (max. cutting sheet thickness): 0.750”
Stainless steel (max. Cutting sheet thickness): 0.600”
Aluminum (max. cutting sheet thickness): 0.600”
Copper (max. Sheet thickness): 0.300”
Brass (max. Sheet thickness): 0.300”
Total electric consumption of system (with exhaust, chiller): 25 kW
Equipped With
ByTrans 3015 Standard Load/Unload
