SOLD-3000-Watt Bystronic BySmart 3015 Fiber Laser
Manufactured in 2016
Machine Number 1186
Request Quote

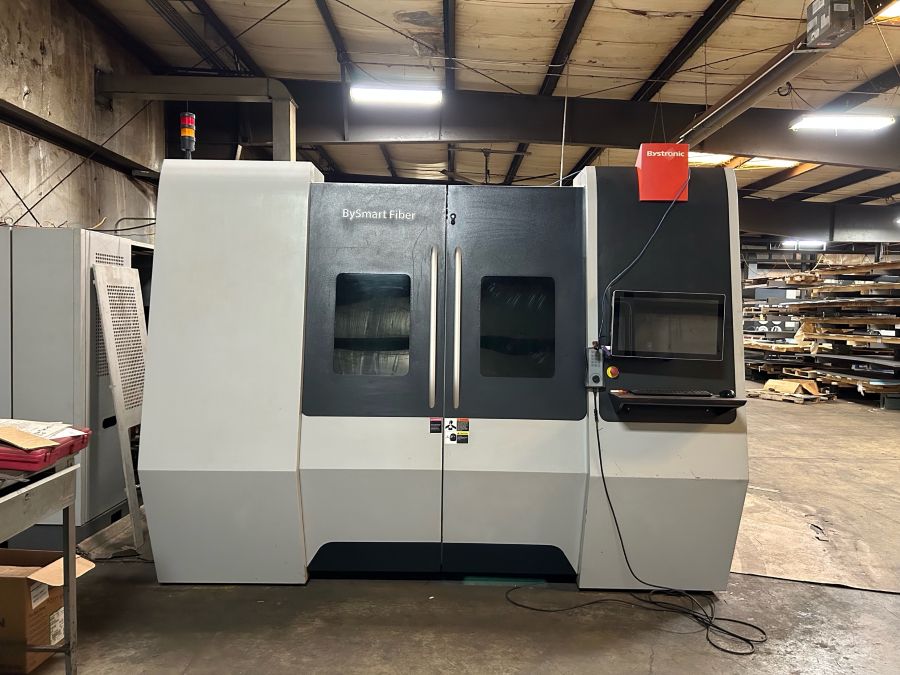

Bystronic BySmart 3015 Fiber
The BySmart Fiber offers excellent cutting performance with 3000-Watts of laser power. The trend-setting technology and the intuitive user interface of the laser cutter make it easy for you to get started. In addition, you benefit from high part output when cutting metal.
Specifications
Construction length, ca. (L): 430”
Construction width, ca. (W): 245”
Construction height, ca. (H): 125”
Nominal sheet size (X): 120”
Nominal sheet size (Y): 60”
Cutting area (X): 124”
Cutting area (Y): 63”
Cutting area (Z): 2.5”
Maximum positioning speed parallel axis X/Y: 3937 in/min
Maximum positioning speed simultaneous: 5511 in/min
Repeatability (positioning speed) Ps (VDI/DGQ 3441): ±0.002”
Positioning accuracy Ps (VDI/DGQ 3441): ±0.004”
Edge detection accuracy: ± 0.02”
Maximum workpiece weight: 1650 lbs
Machine weight (without exhaust, chiller) 28,700 lbs
Resonator Specifications
Laser source: Fiber 3000
Power: 3000 W
Range of adjustment: 300-3000 W
Wavelength: Fiber
Steel (max. cutting sheet thickness): 0.750”
Stainless steel (max. Cutting sheet thickness): 0.500”
Aluminum (max. cutting sheet thickness): 0.500”
Copper (max. Sheet thickness): 0.250”
Brass (max. Sheet thickness): 0.250”
Equipped With
Chiller
Dust Collector
